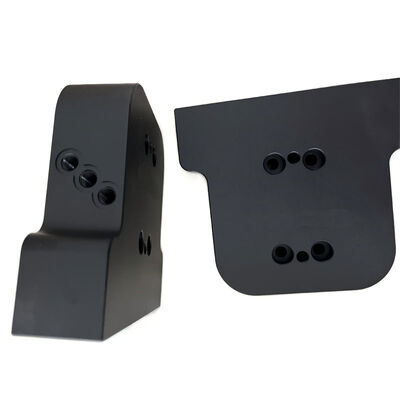

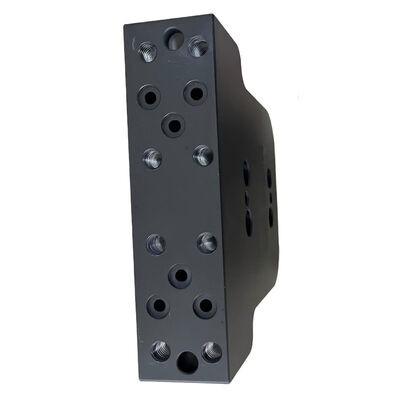

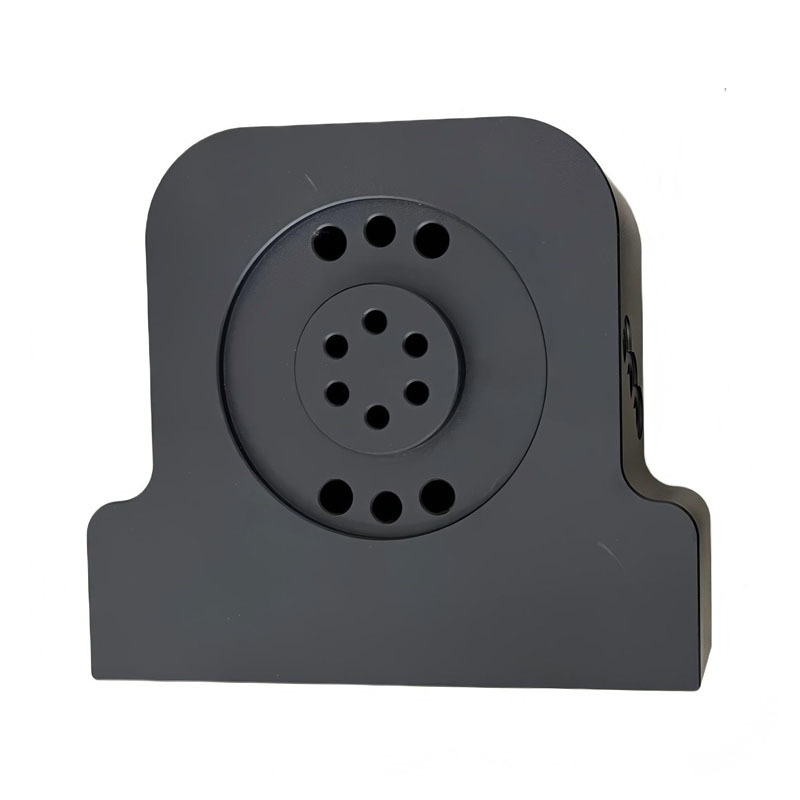

ISO9001 Certified CNC Milling Parts with Anodizing and ±0.002~0.005mm Tolerance
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Aluminum | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | Anodizing CNC Milling Parts,±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified CNC Machined Components |
||
Product Description
CNC Milling with Anodizing and Precision Tolerance Milling
Advanced CNC milling services with precision tolerance control and professional anodizing surface finishes for industrial applications.
CNC Milling Parts Specifications
| Product Name | Precision CNC Milling Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC |
| Surface Finish | Black Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Features
Exceptional Precision & Tolerance Control
Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
Versatile Material Compatibility
Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
Complex Geometry Machining Capability
Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities
Milling Processes & Operations
Core Milling Operations
- Face Milling: Large surface area finishing, squaring operations
- Peripheral Milling: Slotting, profiling, contour machining
- Pocket Milling: Shallow and deep pocketing, cavity creation
- Contour Milling: 2D and 3D surface profiling
- Drilling/Tapping: Precision hole making, thread creation
- Boring: High-precision hole sizing and finishing
- Thread Milling: Internal and external thread creation
Advanced Machining Techniques
| Technique | Description | Applications | Benefits |
|---|---|---|---|
| High-Speed Machining | High spindle speeds with reduced chip loads | Aluminum, graphite, plastics | Reduced cycle times, improved surface finish |
| Hard Milling | Machining materials >45 HRC directly | Tool steels, hardened steels | Eliminates EDM, better surface integrity |
| Trochoidal Milling | Constant engagement circular tool paths | Deep slots, difficult materials | Reduced tool wear, higher material removal |
| Micro-Milling | Small tools (<1mm diameter) | Medical devices, micro-optics, electronics | Precision small features, fine details |
| 5-Axis Simultaneous | Continuous tool orientation control | Turbine blades, impellers, complex geometries | Single setup completion, complex contours |
Tooling & Cutting Technology
Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment/Process | Capability | Typical Tolerances |
|---|---|---|---|
| CNC Turning | Live tooling on mills, separate lathes | Turning features on milled parts | ±0.01mm |
| Grinding | Surface, cylindrical, jig grinders | Precision flatness, parallelism, size | ±0.002mm |
| EDM | Wire and sinker EDM | Complex geometries, hard materials | ±0.005mm |
| Heat Treatment | Vacuum furnaces, atmosphere controlled | Hardening, tempering, stress relief | Material dependent |
| Welding | TIG, laser, electron beam | Component assembly, repair | ±0.05mm after weld |
| Assembly | Press fits, adhesive, fastening | Multi-component assemblies | As per drawing |
Surface Finishing Options
| Finish Type | Process Method | Surface Ra (μm) | Characteristics & Applications |
|---|---|---|---|
| As-Machined | Standard CNC milling | 0.8-3.2 | Cost-effective, visible tool marks, general applications |
| Bead Blasting | Glass bead, aluminum oxide | 0.8-1.6 | Matte finish, uniform appearance, stress relief |
| Polishing | Mechanical, chemical, electro | 0.025-0.4 | Reflective, smooth, food, medical, optical |
| Anodizing | Type I-III, hardcoat (Al) | Base material dependent | Decorative, corrosion resistant, wear resistant |
| Plating | Nickel, chrome, zinc, tin | Varies | Corrosion protection, appearance, solderability |
| Powder Coating | Electrostatic application | N/A (coating) | Durable, color options, corrosion protection |
| Passivation | Nitric or citric acid (SS) | Base material finish | Corrosion resistance restoration |
| Laser Marking | Fiber, YAG lasers | N/A (marking) | Permanent identification, serialization, logos |
| Tumbling/Vibratory | Media finishing | 0.4-1.6 | Deburring, edge breaking, surface smoothing |
Target Industries & Applications
Aerospace & Defense
- Components: Structural frames, brackets, housings, turbine components, fittings
- Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
- Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
- Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
- Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
- Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
- Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
- Components: Engine parts, transmission housings, suspension components, brackets
- Materials: Aluminum, various steels, brass, magnesium (racing)
- Production Volumes: Prototype to high-volume (10,000+ parts)
- Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
- Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
- Materials: Aluminum, copper, engineering plastics, composites
- Precision Requirements: Often ±0.005mm or better, micron-level flatness
- Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
- Components: Machine frames, brackets, guides, robotic components, fixture
- Materials: Carbon steel, aluminum, stainless, cast iron
- Requirements: Wear resistance, dimensional stability, rigidity
- Capabilities: Large part machining, weldment preparation, assembly interfaces
