Precision CNC Milling Parts for Automotive Components with ±0.002~0.005mm Tolerance ISO9001 Certified and 100% Inspection
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | IMission |
| 인증 | ISO9001 |
| 모델 번호 | ODM 및 OEM |
| 최소 주문 수량 | 나는 PC |
| 가격 | 0.1~5USD |
| 포장 세부 사항 | 거품과 판지 또는 주문화 |
| 배달 시간 | 7~35 영업일 |
| 지불 조건 | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력 | 달 당 10000pcs |
제품 상세 정보
| 재료 | 강철 | 무게 | 0.1-10kg |
|---|---|---|---|
| 키워드 | CNC 밀링 부품 | 배송 방법 | 급행, 공기, 바다, 등. |
| 특징 | 내구성과 고정밀도 | 처리 | CNC, 터닝, 밀링, 자동 선반, 연삭, 스탬핑, 레이저 절단, 용접, 3D 인쇄, 다이 캐스팅, 사출 등. |
| 표면 마무리 | 연마, 연삭, 양극 산화 처리, 산화물, 레이저, 조각, 도장, 분말 코팅, 경도 등 | 사용 가능한 자료 | 알루미늄, 구리(황동), 스테인레스 스틸, 강철, 아세탈, ABS, PVDF, PVC, 티타늄 등 |
| 가장 밝은 부분 | ISO9001 인증 CNC 밀링 부품, 100% 검사 CNC 가공 부품, 3D 인쇄 정밀 가공 부품 | ||
| 강조하다 | ±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified CNC Milled Components,100% Inspection CNC Machined Parts |
||
제품 설명

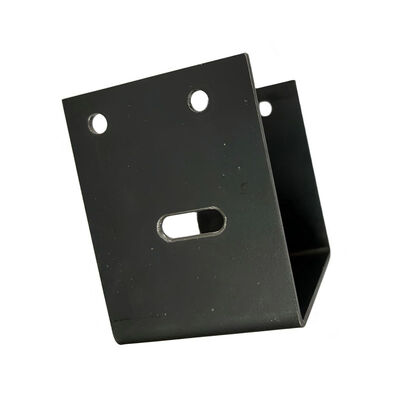

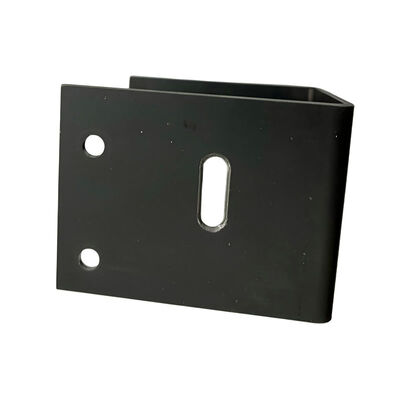

Precision CNC Milling Parts for Automotive Components
As an OEM manufacturer specializing in precision auto components, we deliver high-quality CNC milling parts with exceptional accuracy and reliability.
CNC Milling Parts Specifications
| Product Name | Precision CNC Milling Parts |
| Material Available | Steel |
| Surface Finish | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Key Features
- Exceptional Precision & Tolerance Control: Achieves tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Suitable for processing aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials with excellent adaptability.
- Complex Geometry Machining Capability: Capable of creating intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Technical Parameters & Tolerances
Standard Machining Tolerances
±0.025mm to ±0.10mm
Precision Machining Capability
±0.005mm (with process control)
Ultra-Precision Machining
±0.002mm (for critical features)
Surface Finish Range
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm
Geometric Tolerancing
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Material Expertise & Machinability
Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Customization & Special Capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20× diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
