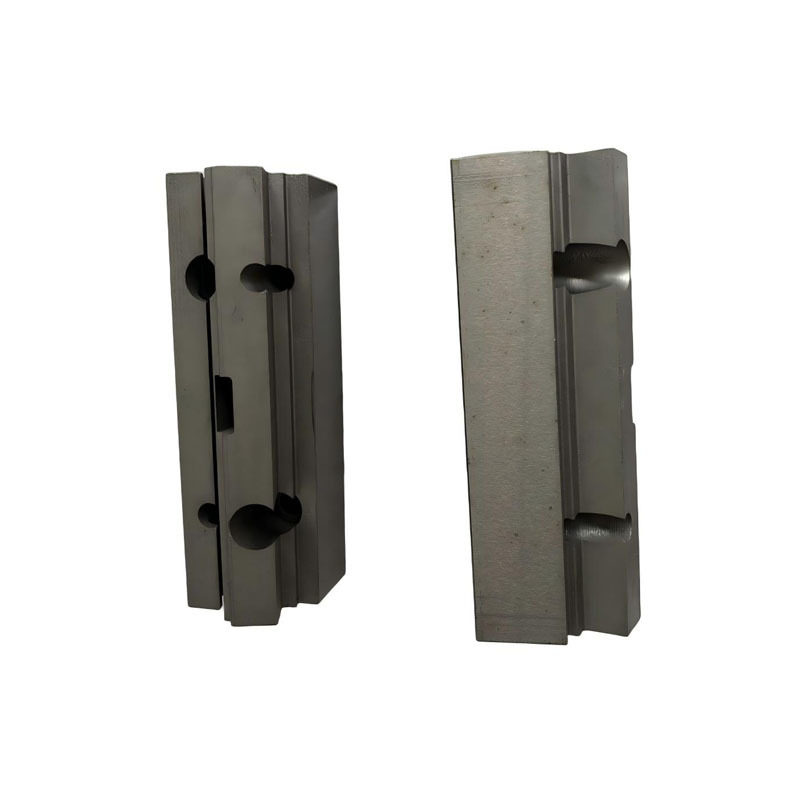

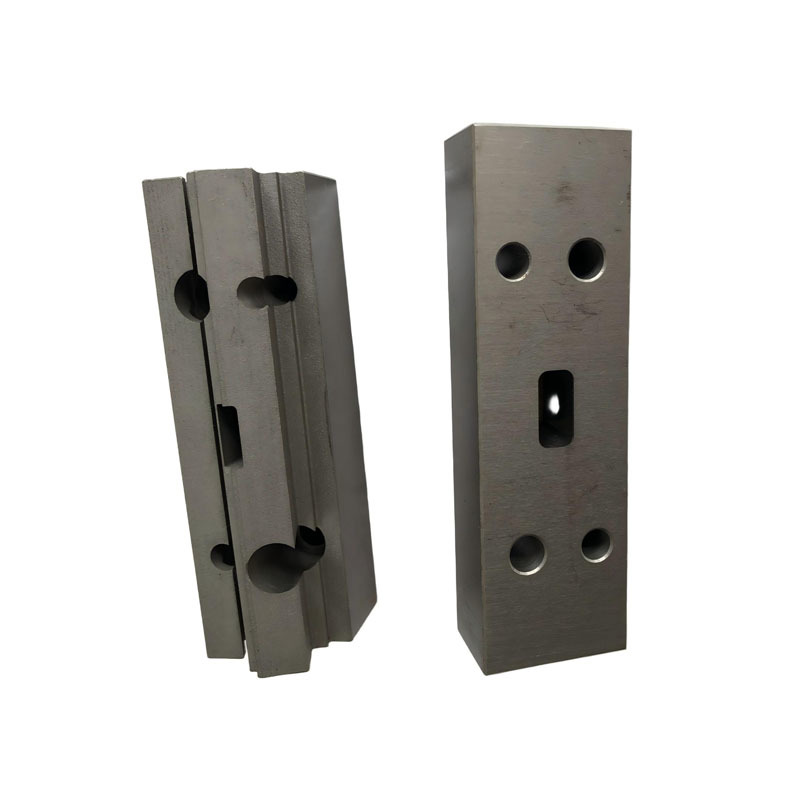

Custom Engraving Front Panel CNC Machining Parts with ISO9001 Certified Precision Components
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Machining Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping,Available Surface Finishes To Ensure Part Corrosion Resistance, Aesthetics, And Specific Functionality, We Offer Comprehensive Post-processing Services: Plating: Zinc Plating, Nickel Plating, Chrome Pla |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | Custom Engraving Front Panel,±0.002~0.005mm Tolerance CNC Machining Parts,ISO9001 Certified Precision Components |
||
Product Description
Front Panel CNC Machining with Engraving
Precision CNC machining services for front panels with custom engraving capabilities, delivering exceptional accuracy and surface finishes.
CNC Machining Specifications
| Product Name | CNC Machining Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Machining Parts Key Features
Characterized by high repeatability and complex geometric capabilities, CNC machining parts eliminate the errors of manual operation and can be precisely crafted into intricate shapes that are difficult to achieve with traditional processes. They support flexible customization based on specific design requirements, and feature smooth surface finishes that reduce post-processing needs, thus enhancing overall production efficiency and part performance.
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Quality Assurance & Testing
Inspection Equipment
- Coordinate Measuring Machines (CMM): 3D measurement with 0.001mm accuracy
- Optical Profile Projectors: 2D contour measurement and comparison
- Surface Roughness Testers: Ra, Rz measurements for critical surfaces
- Hardness Testers: Rockwell, Vickers, and micro-hardness testing
- Toolmaker's Microscopes: Precision measurement of small features
Service & Support
Custom Manufacturing Process
- Requirement Analysis: Part design review, material selection, production volume assessment
- Concept Design: Die layout, strip layout for progressive dies, feasibility study
- Detailed Design: 3D modeling, component detailing, interference checking
- Manufacturing Planning: CNC programming, electrode design, process sequencing
- Precision Manufacturing: Machining, heat treatment, assembly, fitting
- Testing & Validation: Die tryout, sample approval, process optimization
- Delivery & Training: Installation support, operator training, documentation
After-Sales Services
- Preventive Maintenance Programs: Scheduled inspection and maintenance contracts
- Repair & Refurbishment: Worn component replacement, surface renovation, design modifications
- Spare Parts Inventory: Common wear components kept in stock for quick delivery
- Technical Support: 24/7 emergency support for production-critical issues
- Performance Optimization: Die modification for increased speed or improved part quality
Technical Advantages
Engineering Expertise
- Design for Manufacturing (DFM): Optimization for reduced cycle time, improved part ejection, extended die life
- Standardization: Modular designs using standard components to reduce cost and lead time
- Innovative Solutions: Experience with multi-material molds, in-mold assembly, and hybrid processes
Manufacturing Excellence
- Advanced Equipment: State-of-the-art CNC, EDM, and grinding equipment with climate control
- Skilled Craftsmen: Toolmakers with 10-25 years experience in precision die making
- Process Control: Statistical process control throughout manufacturing
- Cleanroom Assembly: Critical assembly in controlled environments for contamination-sensitive applications
Frequently Asked Questions
Q: What is the typical lead time for a custom stamping die?
A: Lead times vary from 4-12 weeks depending on complexity. Progressive dies average 6-8 weeks, while simpler compound dies can be completed in 4-5 weeks.
Q: Do you provide sample parts before full die manufacturing?
A: Yes, we offer rapid prototyping using CNC machining or 3D printing to validate part design before committing to hard tooling.
Q: How do you ensure die longevity and maintenance?
A: We design with modular wear components, provide detailed maintenance manuals, and offer training on proper die setup and maintenance procedures.
Q: Can you work with international design standards?
A: Yes, we're experienced with ISO, DIN, JIS, and ASTM standards, and can accommodate both metric and imperial measurements.
Q: What file formats do you accept for die design?
A: We accept all major 3D formats including STEP, IGES, Parasolid, and native CAD files from UG, CATIA, SolidWorks, and Pro/E.
Q: Do you offer volume-based pricing for mold components?
A: Yes, we provide tiered pricing for standardized components ordered in quantity, with discounts available for annual supply agreements.
Contact Information
For custom die and mold component quotations, please provide:
- Part drawings or 3D models
- Annual production volume requirements
- Material specifications
- Existing tooling samples (if applicable)
- Press specifications (for stamping dies)
Engineering Response: Preliminary technical assessment within 48 hours of receiving complete specifications.
