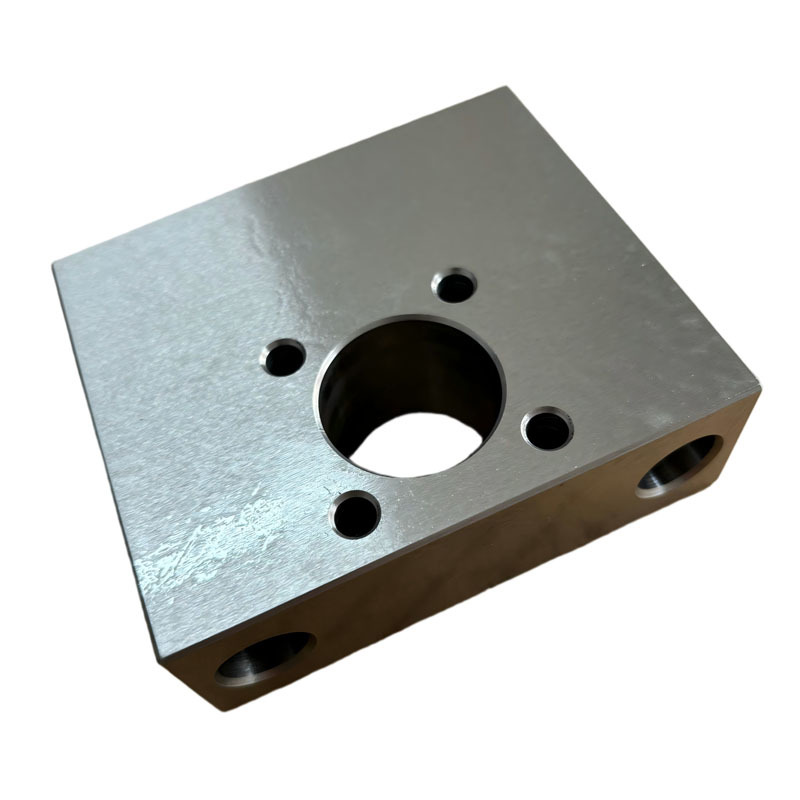

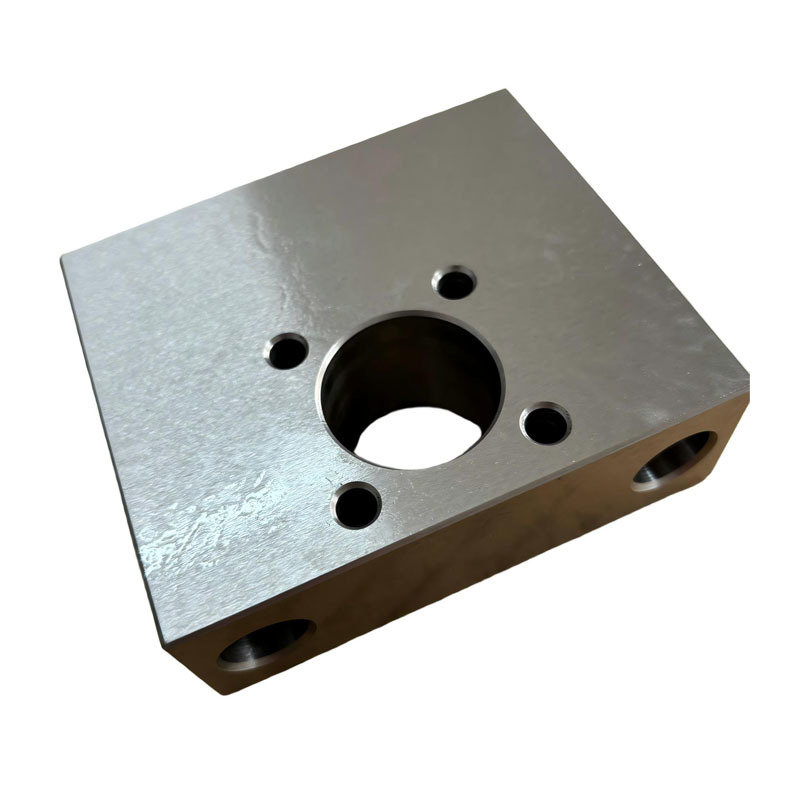

Titanium Alloy CNC Milling Parts and CNC Milled Components with ISO9001 Certification
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | Titanium Alloy CNC Milling Parts,±0.002~0.005mm Tolerance CNC Milled Components,ISO9001 Certified Precision Milled Parts |
||
Product Description
Titanium Alloy CNC Milled Components & Precision Blocks
High-precision CNC milling services for titanium alloy components and blocks with precision cavities, delivering exceptional dimensional accuracy and complex geometry capabilities.
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
| Material Available | Steel |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging & Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Parts Key Features & Capabilities
Exceptional Precision & Tolerance Control
Achieve tight dimensional tolerances down to ±0.005mm for high-precision applications with consistent geometries across batch production.
Versatile Material Compatibility
Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, and engineering plastics.
Complex Geometry Machining Capability
Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Material Expertise & Machinability
Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Milling Processes & Special Operations
Core Milling Operations
- Face Milling: Large surface area finishing, squaring operations
- Peripheral Milling: Slotting, profiling, contour machining
- Pocket Milling: Shallow and deep pocketing, cavity creation
- Contour Milling: 2D and 3D surface profiling
- Drilling/Tapping: Precision hole making, thread creation
- Boring: High-precision hole sizing and finishing
- Thread Milling: Internal and external thread creation
Advanced Machining Techniques
| Technique | Description | Applications | Benefits |
|---|---|---|---|
| High-Speed Machining | High spindle speeds with reduced chip loads | Aluminum, graphite, plastics | Reduced cycle times, improved surface finish |
| Hard Milling | Machining materials >45 HRC directly | Tool steels, hardened steels | Eliminates EDM, better surface integrity |
| Trochoidal Milling | Constant engagement circular tool paths | Deep slots, difficult materials | Reduced tool wear, higher material removal |
| Micro-Milling | Small tools (<1mm diameter) | Medical devices, micro-optics, electronics | Precision small features, fine details |
| 5-Axis Simultaneous | Continuous tool orientation control | Turbine blades, impellers, complex geometries | Single setup completion, complex contours |
Tooling & Cutting Technology
- Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
- Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
- Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
- Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
- Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Target Industries & Applications
Aerospace & Defense
- Components: Structural frames, brackets, housings, turbine components, fittings
- Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
- Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
- Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
- Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
- Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
- Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
- Components: Engine parts, transmission housings, suspension components, brackets
- Materials: Aluminum, various steels, brass, magnesium (racing)
- Production Volumes: Prototype to high-volume (10,000+ parts)
- Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
- Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
- Materials: Aluminum, copper, engineering plastics, composites
- Precision Requirements: Often ±0.005mm or better, micron-level flatness
- Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
- Components: Machine frames, brackets, guides, robotic components, fixture
- Materials: Carbon steel, aluminum, stainless, cast iron
- Requirements: Wear resistance, dimensional stability, rigidity
- Capabilities: Large part machining, weldment preparation, assembly interfaces
