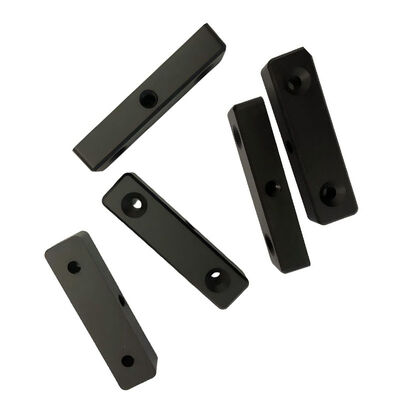

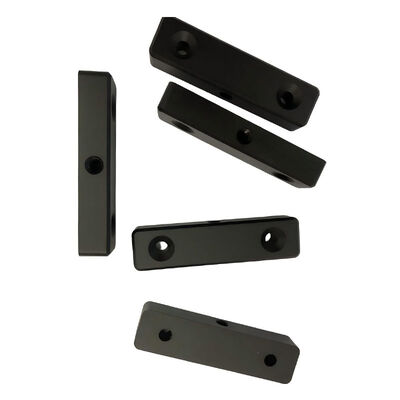

Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | 5-Axis CNC Milling CNC Milling Parts,Complex 3D Steel Prototype CNC Machined Components,±0.002~0.005mm Tolerance Precision Milled Parts |
||
Product Description
Complex 3D Steel Prototype | 5-Axis CNC Milling Service
High-precision CNC milling parts manufactured using advanced 5-axis machining technology for complex steel prototypes and production components.
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Steel |
| Surface Finish | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Key Features
CNC milling parts feature high precision and excellent surface finish. They can meet tight tolerance requirements and realize complex structural shapes. With stable quality and customizable design, they are suitable for various materials and widely used in industrial production.
Milling Processes & Special Operations
Core Milling Operations
- Face Milling: Large surface area finishing, squaring operations
- Peripheral Milling: Slotting, profiling, contour machining
- Pocket Milling: Shallow and deep pocketing, cavity creation
- Contour Milling: 2D and 3D surface profiling
- Drilling/Tapping: Precision hole making, thread creation
- Boring: High-precision hole sizing and finishing
- Thread Milling: Internal and external thread creation
Advanced Machining Techniques
| Technique | Description | Applications | Benefits |
|---|---|---|---|
| High-Speed Machining | High spindle speeds with reduced chip loads | Aluminum, graphite, plastics | Reduced cycle times, improved surface finish |
| Hard Milling | Machining materials >45 HRC directly | Tool steels, hardened steels | Eliminates EDM, better surface integrity |
| Trochoidal Milling | Constant engagement circular tool paths | Deep slots, difficult materials | Reduced tool wear, higher material removal |
| Micro-Milling | Small tools (<1mm diameter) | Medical devices, micro-optics, electronics | Precision small features, fine details |
| 5-Axis Simultaneous | Continuous tool orientation control | Turbine blades, impellers, complex geometries | Single setup completion, complex contours |
Tooling & Cutting Technology
- Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
- Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
- Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
- Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
- Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Available Surface Finishes
Comprehensive post-processing services to ensure part corrosion resistance, aesthetics, and specific functionality:
- Plating: Zinc Plating, Nickel Plating, Chrome Plating, Tin Plating
- Coating: Powder Coating, Spray Painting, E-Coating
- Chemical Treatment: Anodizing (for Aluminum), Passivation (for Stainless Steel), Black Oxide
- Mechanical Treatment: Polishing, Brushing, Deburring
Quality Control
Full-process quality control system implementation:
- Certification: ISO 9001:2015 Quality Management System Certified
- Inspection Equipment: CMM, Optical Comparators, Calipers, Micrometers, Salt Spray Test Chambers, Hardness Testers
- Process Control: Full-process monitoring from Incoming Quality Control (IQC), In-Process Quality Control (IPQC) to Final Outgoing Quality Control (OQC)
- Documentation Support: PPAP (Production Part Approval Process), FAI (First Article Inspection) Reports, Material Certificates
Our Working Process
- Inquiry & Consultation: Provide drawings (DXF/DWG/STEP/IGS), samples, or detailed requirements
- Design & Quotation: Engineering team conducts DFM analysis and provides detailed solution with competitive quote
- Tooling Development: Precision die design and manufacturing upon order confirmation
- Sample Approval: First article samples provided for testing and approval
- Mass Production: Automated mass production after sample approval
- QC & Delivery: Final inspection, professional packaging, and scheduled shipment
Why Choose Us?
- Expert Engineering Support: Free DFM advice to optimize your design for cost savings
- Rapid Response: 24-hour inquiry reply, fast prototyping (typically 7-15 days)
- Flexible Customization: Full OEM/ODM support, manufacturing strictly to your specifications
- Global Supply Experience: Products exported to North America, Europe, Asia, familiar with international standards and logistics
Packaging & Shipping
Packaging: Standard export packaging options include blister trays, bubble bags, EPE foam, cartons, and wooden crates to ensure parts are free from wear and deformation during transit.
Shipping: Support various trade terms (FOB, CIF, DDP, etc.). Global shipping via sea freight, air freight, or express couriers (DHL, FedEx, etc.).
