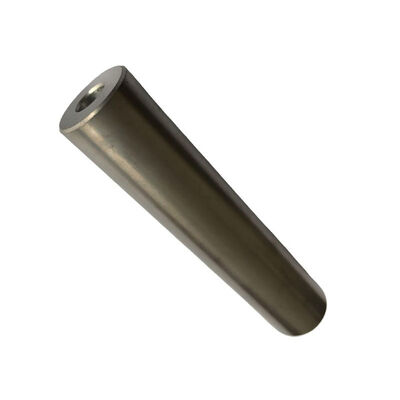

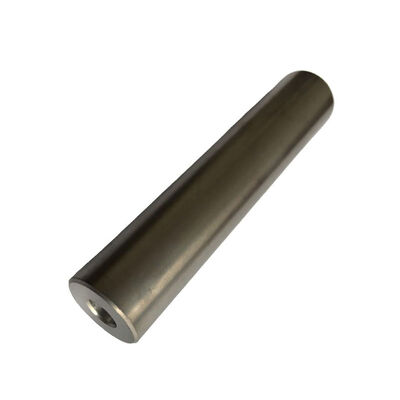

Quick Turnaround Custom Swiss Turning Parts with ±0.002~0.005mm Tolerance, ISO9001 Certified, and 100% Inspection for Medical Applications
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | SS | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ±0.002~0.005mm Tolerance Swiss Turning Parts,ISO9001 Certified CNC Turning Parts,100% Inspection Precision Machined Components |
||
Product Description
Quick Turnaround Custom Swiss Turning Service for Medical Parts
Precision CNC turning services specializing in medical components with rapid delivery timelines and exceptional quality standards.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
| Material Available | SS |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Turning Parts Characteristics
CNC turning parts offer high precision (tolerances up to ±0.005mm) and consistent quality, ensuring they fit perfectly in assemblies. They have smooth surface finishes (Ra 0.8-3.2μm) and can be made into different shapes—like cylindrical, threaded, or grooved designs—to match various industrial needs. These parts work with many materials (aluminum, steel, stainless steel, brass) and provide good durability, including wear and corrosion resistance. They're produced efficiently, support small-batch or mass customization, and are widely used in automotive, electronics, hardware, and aerospace industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm * 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm * 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm * 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm * 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
- Standard Tolerance Range: ±0.01mm to ±0.05mm
- Fine Tolerance Capability: ±0.005mm (for critical dimensions)
- Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
- Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
- Geometric Tolerances: Concentricity: 0.005mm, Cylindricity: 0.008mm, True Position: 0.01mm
- Thread Machining Capabilities: Metric/Unified/Whitworth threads, ACME, trapezoidal, and special forms, Single-point threading up to 64 TPI, Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Inspection Equipment
- Multi-Sensor CMMs: 3D measurement with 0.001mm accuracy
- Optical Comparators: Profile projection with 20* to 100* magnification
- Surface Roughness Testers: Portable and benchtop Ra/Rz measurement
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness
- Thread Gauges: Complete sets to ISO/ANSI standards
- Digital Calipers/Micrometers: 0.001mm resolution, calibrated regularly
- Roundness Testers: Concentricity and cylindricity measurement
- Force Measurement: Torque testing, spring constant verification
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Customization & Special Capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20* diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
Frequently Asked Questions
Q: What is the difference between Swiss-type and conventional CNC turning?
A: Swiss-type lathes guide material through a bushing near the cutting tools, providing exceptional support for long, slender parts and enabling complex secondary operations in a single setup. Conventional lathes are typically more cost-effective for shorter parts with simpler geometries.
Q: Can you hold both metric and imperial tolerances?
A: Yes, our equipment and inspection tools are capable of working in both measurement systems. We regularly produce parts to ISO (metric) and ASME (imperial) standards.
Q: Do you provide material certifications?
A: Yes, we provide full traceability with mill test certificates for all metal materials. Additional testing (chemical analysis, mechanical properties) is available upon request.
Q: What is your minimum order quantity?
A: We accommodate orders from single prototypes to high-volume production. For standard materials and processes, our minimum production order is typically 50 pieces, but we evaluate all requests individually.
Q: How do you handle design changes during production?
A: All design changes follow a formal Engineering Change Order (ECO) process with customer approval. We maintain revision control of all drawings and specifications.
Q: Can you reverse engineer parts from samples?
A: Yes, we offer reverse engineering services using CMM measurement and 3D scanning to create manufacturing drawings from physical samples.
Contact for Custom Quotations
For project-specific pricing and technical consultation, please provide:
- Complete drawings or 3D models with critical dimensions called out
- Material specifications or performance requirements
- Quantity requirements (prototype, annual volumes)
- Applicable industry standards or certifications
- Target timeline and delivery requirements
Engineering Support: Technical review and preliminary quotations within 24 hours for complete submissions.
