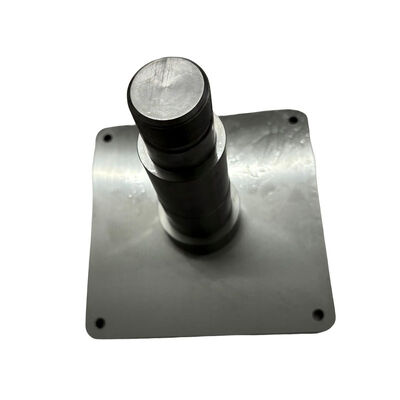

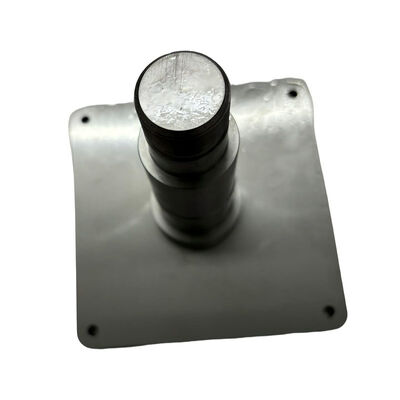

ISO9001 Certified CNC Milled Mounting Plate with High Tolerance and 100% Inspection for Robotics and Drone Frame Arm
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ISO9001 Certified CNC Milled Mounting Plate,±0.002~0.005mm Tolerance CNC Turning Milling Parts,100% Inspection Precision Machined Components |
||
Product Description
CNC Milled Mounting Plate for Robotics and Drone Frame Arm
Precision CNC milled carbon fiber mounting plates designed for robotics and drone applications, offering exceptional strength-to-weight ratio and dimensional stability.
CNC Turning-Milling Parts Specifications
| Product Name | CNC Turning Milling Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning-Milling Parts Key Features
CNC turning-milling parts are renowned for ultra-precise dimensional accuracy (tolerances down to ±0.005 mm) and superior surface finish (Ra ≤ 0.8 μm), achieved by the seamless integration of turning and milling operations in a single setup. These parts eliminate secondary machining errors, ensure consistent geometric consistency across batch production, and accommodate complex features such as multi-axis threaded holes, contoured surfaces, and integrated slots--making them ideal for high-performance applications in aerospace, automotive, and industrial machinery.
Manufacturing Capabilities & Equipment
Material Expertise & Machinability
Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Milling Processes & Special Operations
Core Milling Operations
- Face Milling: Large surface area finishing, squaring operations
- Peripheral Milling: Slotting, profiling, contour machining
- Pocket Milling: Shallow and deep pocketing, cavity creation
- Contour Milling: 2D and 3D surface profiling
- Drilling/Tapping: Precision hole making, thread creation
- Boring: High-precision hole sizing and finishing
- Thread Milling: Internal and external thread creation
Advanced Machining Techniques
| Technique | Description | Applications | Benefits |
|---|---|---|---|
| High-Speed Machining | High spindle speeds with reduced chip loads | Aluminum, graphite, plastics | Reduced cycle times, improved surface finish |
| Hard Milling | Machining materials >45 HRC directly | Tool steels, hardened steels | Eliminates EDM, better surface integrity |
| Trochoidal Milling | Constant engagement circular tool paths | Deep slots, difficult materials | Reduced tool wear, higher material removal |
| Micro-Milling | Small tools (<1mm diameter) | Medical devices, micro-optics, electronics | Precision small features, fine details |
| 5-Axis Simultaneous | Continuous tool orientation control | Turbine blades, impellers, complex geometries | Single setup completion, complex contours |
Tooling & Cutting Technology
Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Target Industries & Applications
Aerospace & Defense
Components: Fasteners, fittings, bushings, spacers, hydraulic parts
Materials: Titanium, high-strength aluminum, corrosion-resistant steels
Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
Components: Surgical instruments, implantable components, device housings
Materials: 316L stainless, titanium, PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
Components: Engine parts, transmission components, fuel system parts, fittings
Materials: Various steels, aluminum, brass, exotic alloys for racing
Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
Components: Connector pins, shielding components, heat sinks, spacers
Materials: Copper alloys, aluminum, conductive plastics
Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
Components: Valve bodies, fittings, manifolds, pistons, cylinders
Materials: Carbon steel, stainless, brass, aluminum
Critical Aspects: Pressure integrity, sealing surfaces, thread quality
