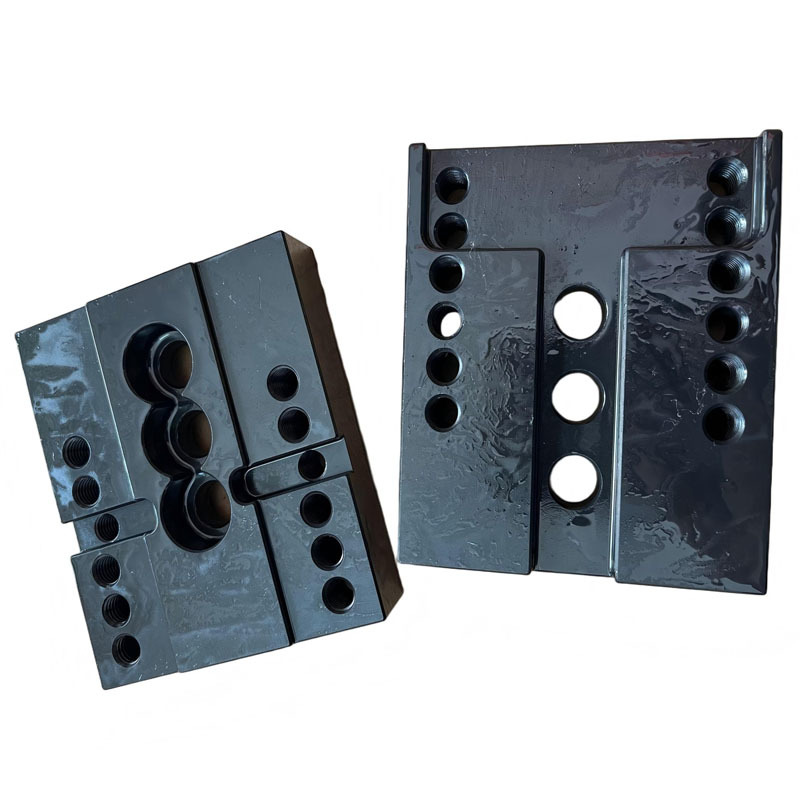

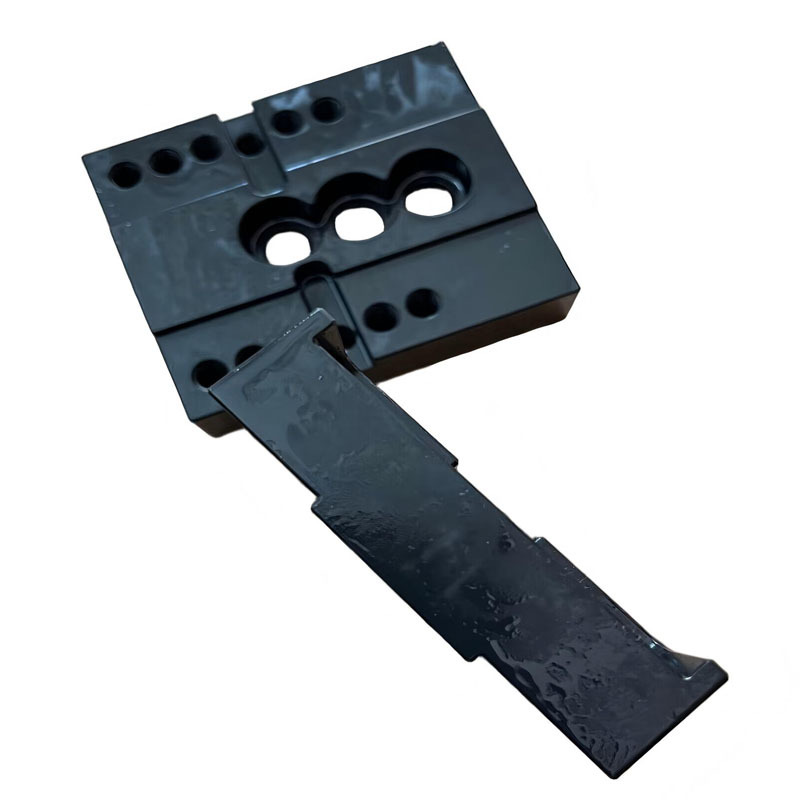

CNC Machined High Precision ISO9001 Certified Mould Parts and Metal Stamping Dies
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Machined | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | CNC Machined Mould Parts,High Precision Metal Stamping Dies,ISO9001 Certified Injection Mold Components |
||
Product Description
Precision Metal Stamping Dies & Mold Components
Custom manufacturing solutions for high-precision metal stamping dies, injection molds, and specialized mold components designed for mass production across diverse industries.
Product Specifications
| Product Name | Mould Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC |
| Surface Finish | Blackened |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
Core Product Categories & Technical Specifications
A. Stamping Dies (Press Tools)
| Die Type | Key Characteristics | Typical Applications | Tolerance Capability |
|---|---|---|---|
| Progressive Dies | Multi-station, automatic feeding, high output (200-1200+ SPM) | Electrical contacts, brackets, connectors, lead frames | ±0.01mm |
| Transfer Dies | Individual part transfer between stations, complex geometries | Automotive components, appliance parts, structural elements | ±0.02mm |
| Compound Dies | Multiple operations in single stroke, high precision | Washers, shims, simple stamped parts | ±0.015mm |
| Deep Drawing Dies | Multi-stage metal forming for cup-shaped parts | Battery cans, sinks, housings, containers | ±0.05mm |
Technical Specifications:
Maximum Die Size: 1500mm * 1000mm * 500mm
Press Tonnage Compatibility: 20-800 tons
Stripper Systems: Mechanical, pneumatic, or hydraulic options
Guidance Systems: Ball bearing, roller bearing, or plain bronze guides
Die Life: 1-5 million strokes (depending on material and maintenance)
B. Injection Mold Components
| Component Type | Materials Used | Heat Treatment | Surface Treatments |
|---|---|---|---|
| Mold Bases | 50# steel, S55C, P20 | Normalizing, stress relief | Nitriding, chrome plating |
| Cavity & Core | H13, 8407, S136, NAK80 | Vacuum hardening (HRC 48-52) | Polishing, texturing, PVD coating |
| Ejector Pins | SKD61, DC53 | Hardened to HRC 56-60 | TiN, TiCN, DLC coatings |
| Leader Pins/Bushings | SUJ2, GCr15 | Carburizing, hardening | Hard chrome plating |
| Sprue Bushings | SKD61, 8407 | Hardened to HRC 52-56 | Polished internal channels |
C. Specialized Mold Components
- Hot Runner Systems: Complete hot runner manifolds, nozzles, and temperature controllers
- Lifter Systems: Angled lifters, collapsible cores for undercuts
- Slide Systems: Hydraulic, pneumatic, or mechanical angled slides
- Quick Mold Change Systems: Standardized clamping, connection interfaces
Manufacturing Process Gallery
Design & Engineering Services
CAD Software: UG/NX, CATIA, Pro/E, AutoCAD
CAM Programming: HyperMILL, Mastercam, PowerMILL
Simulation & Analysis:
- Forming simulation (AutoForm, Dynaform)
- Mold flow analysis (Moldflow, Moldex3D)
- Structural FEA for die stress analysis
Standard Component Libraries: Misumi, PUNCH, HASCO, DME
Quality Assurance & Testing
Inspection Equipment
- Coordinate Measuring Machines (CMM): 3D measurement with 0.001mm accuracy
- Optical Profile Projectors: 2D contour measurement and comparison
- Surface Roughness Testers: Ra, Rz measurements for critical surfaces
- Hardness Testers: Rockwell, Vickers, and micro-hardness testing
- Toolmaker's Microscopes: Precision measurement of small features
Die Testing & Validation
- First Article Inspection: Complete dimensional verification of initial parts
- Process Capability Study: Cp, Cpk analysis for critical dimensions
- Die Tryout: Testing in compatible presses with actual production materials
- Run-off Validation: Extended production run to verify die stability and performance
- Documentation: Inspection reports, material certificates, maintenance manuals
Frequently Asked Questions
How is quality ensured? What certificate do you have?
We have obtained ISO9001 quality management system certification, and we maintain a professional quality team with advanced inspection and testing equipment to ensure consistent quality standards.
What's your delivery time?
Delivery time depends on quantity, typically taking 7-25 days after order confirmation.
Do you offer custom products?
Yes, we provide custom manufacturing services. Please send us your product drawing or sample, and we can custom-make hardware according to your requirements. Our professional technical team is available to provide expert advice on product design and manufacturing.
How should I order and make payment?
For bulk production orders, we require 40% T/T payment in advance, with the balance due before shipment.
What material of the product can you supply?
We work with various materials including Steel, Stainless steel, aluminum, Brass, copper, nylon, and more.
Which surface treatments do you support?
We offer multiple surface treatment options including Polishing, Painting, Chroming, Anodizing, Brushing, Texture, Sandblasting, and UV coating.
Are you trading company or manufacturer?
We are a manufacturer with direct production capabilities.
