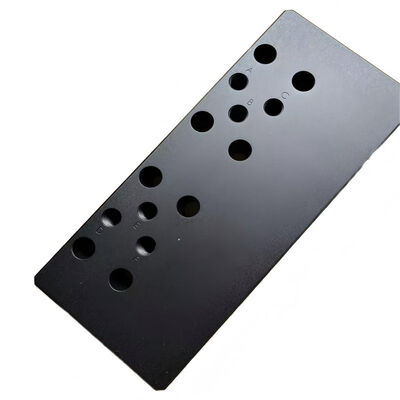

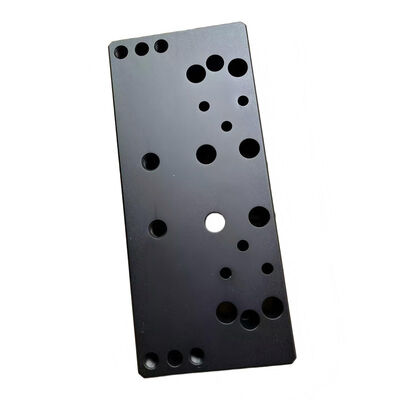

High Precision CNC Milling Parts with ISO9001 Certification and 100% Inspection for Hydraulic Systems
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Milling |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Milling Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Milling |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | High Precision CNC Milling Parts,ISO9001 Certified CNC Machined Components,100% Inspection Precision Milled Parts |
||
Product Description
High-Tolerance CNC Milling Components for Hydraulic System CNC Lathed Valve Parts
We provide comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.
Product Specifications of CNC Milling Parts
| Product Name | CNC Milling Parts |
| Material Available | Aluminum |
| Surface Treatment | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | +/-0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
Key Features of CNC Milling Parts
- Exceptional Precision & Tolerance Control: Achieves tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Suitable for processing aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials.
- Complex Geometry Machining Capability: Capable of creating intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Technical Parameters & Tolerances
Standard Machining Tolerances
±0.025mm to ±0.10mm
Precision Machining Capability
±0.005mm (with process control)
Ultra-Precision Machining
±0.002mm (for critical features)
Surface Finish Range
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Core Milling Operations
Face Milling: Large surface area finishing, squaring operations
Peripheral Milling: Slotting, profiling, contour machining
Pocket Milling: Shallow and deep pocketing, cavity creation
Contour Milling: 2D and 3D surface profiling
Drilling/Tapping: Precision hole making, thread creation
Boring: High-precision hole sizing and finishing
Thread Milling: Internal and external thread creation
Tooling & Cutting Technology
Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Quality Assurance & Inspection
Inspection Equipment & Capabilities
CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
Roundness/Form Testers: Cylindricity, concentricity, flatness verification
Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
Portable Arms: Articulated arms with laser scanner for large parts
Digital Height Gauges: Precision height measurement with 0.001mm resolution
Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
Force/Torque Measurement: For assembly validation, spring constant verification
Quality Management System
ISO 9001:2015 Certified: Full quality management system implementation
First Article Inspection: AS9102, PPAP, or custom FAIR documentation
Statistical Process Control: Real-time monitoring of critical characteristics
Material Certification: Mill test reports, material traceability to heat/lot
Calibration Program: All inspection equipment calibrated to NIST-traceable standards
Document Control: Revision-controlled drawings, specifications, procedures
Non-Conformance System: Documented containment, root cause analysis, corrective action
