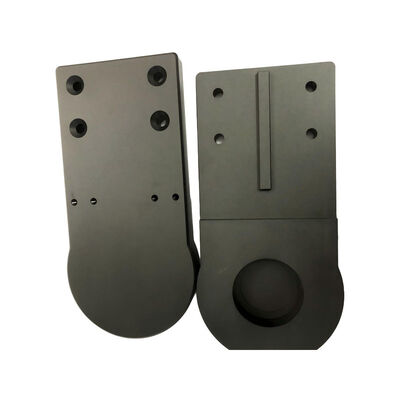

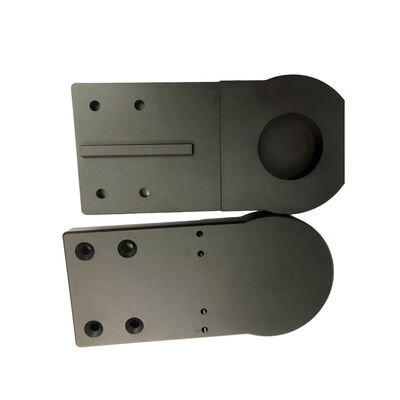

ISO9001 Certified CNC Milling Parts with ±0.002~0.005mm Tolerance and 100% Inspection for Precision Machined Components
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ISO9001 Certified CNC Milling Parts,±0.002~0.005mm Tolerance CNC Machined Parts,100% Inspection Precision Machined Components |
||
Product Description
Precision CNC Milling Services for Industrial Applications
Our ISO 9001:2015 certified facility specializes in high-precision CNC milling of stainless steel and other industrial-grade materials, delivering exceptional quality components for demanding applications.
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
| Material Available | Steel |
| Surface Finish | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Parts Key Features & Capabilities
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials.
- Complex Geometry Machining Capability: Create intricate shapes such as 3D contours, deep pockets, internal threads, and custom cavities that are difficult with conventional methods.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Material Expertise & Machinability
Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Industries We Serve
Our precision components are integral to the success of demanding applications across multiple sectors:
- Automotive: Engine components, transmission shafts, sensor housings, and fuel system fittings
- Aerospace: Lightweight structural parts, aircraft fasteners, and precision shafts meeting stringent standards
- Medical & Dental: Surgical instrument parts, implantable device components, and diagnostic equipment shafts requiring biocompatibility
- Electronics & Industrial: Connector pins, semiconductor parts, hydraulic/pneumatic fittings, valve bodies, and custom shafts for machinery
Our Product Portfolio Includes
We manufacture a diverse array of turned components, such as:
- Shafts & Pins: Precision shafts, axles, dowel pins, and studs
- Fasteners & Connectors: Specialized bolts, screws, standoffs, spacers, bushings, and couplings
- Complex Fittings: Hydraulic and pneumatic fittings (elbows, tees, adapters), nozzles, and valve components
- Custom Components: Any custom-designed part based on your technical drawings or samples
Why Partner With Us?
- Uncompromising Quality: Rigorous in-process and final inspection using advanced measuring equipment (CMMs, optical comparators) ensures every part meets exact specifications
- Technical Collaboration: Our engineering team provides expert DFM (Design for Manufacturability) feedback to optimize your part for performance, cost, and lead time
- Supply Chain Reliability: Consistent on-time delivery, supported by flexible production planning and transparent communication
- Competitive Value: Optimized processes and economies of scale allow us to offer superior quality at competitive prices, maximizing your ROI
- Confidentiality & IP Protection: Your designs and projects are handled with the utmost security and professionalism
Your Trusted Manufacturing Solution
Whether you need a small batch of prototype parts or a sustained, high-volume production supply, we are equipped to be your seamless extension. We specialize in OEM & ODM manufacturing, ready to work from your drawings or collaborate on custom designs.
Contact Us Today
Request a competitive quotation, discuss your project specifications, or learn more about how our precision CNC turning services can enhance your supply chain.
