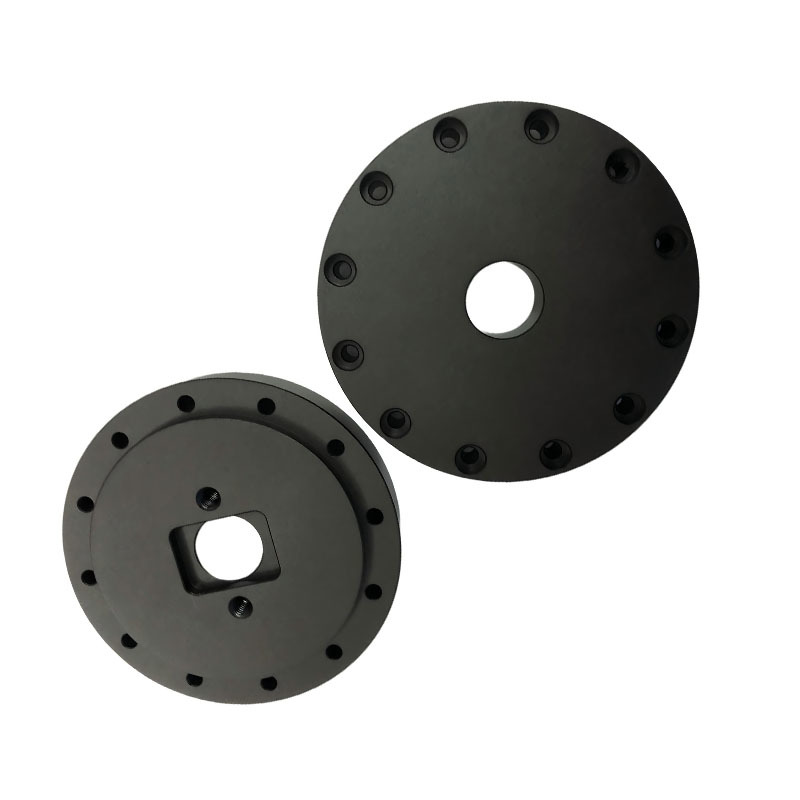

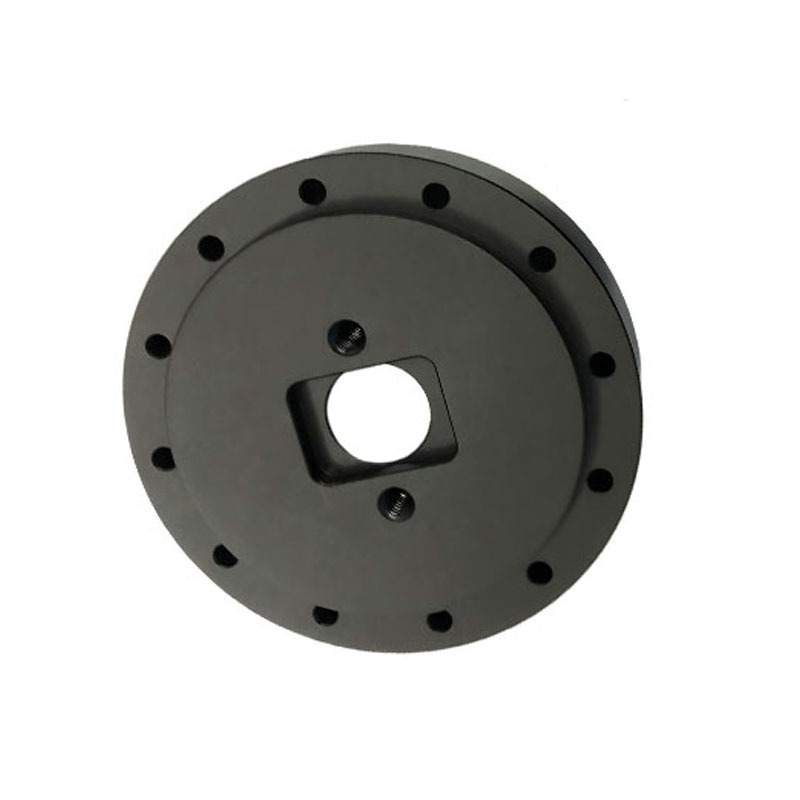

OEM Aluminum CNC Turning Parts for Aerospace with ISO9001 Certification
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Aluminum | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | Aerospace Application CNC Turning Parts,±0.002~0.005mm Tolerance CNC Machined Parts,ISO9001 Certified Precision Machined Components |
||
Product Description
Precision CNC Turning Components for Aerospace Applications
Our OEM aluminum CNC turning components are engineered to meet the rigorous demands of aerospace applications, delivering exceptional precision and reliability.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
| Material Available | Aluminum |
| Processing | CNC Turning |
| Surface Finish | Black Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Turning Parts Characteristics
Our CNC turning parts deliver high precision with tolerances up to ±0.005mm and consistent quality, ensuring perfect fit in assemblies. They feature smooth surface finishes (Ra 0.8-3.2μm) and can be manufactured in various shapes including cylindrical, threaded, or grooved designs to meet diverse industrial requirements. These components are compatible with multiple materials including aluminum, steel, stainless steel, and brass, offering excellent durability with wear and corrosion resistance. Our efficient production processes support both small-batch and mass customization, serving automotive, electronics, hardware, and aerospace industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm * 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm * 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm * 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm * 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Industries We Serve
Our precision components are integral to the success of demanding applications across multiple sectors:
- Automotive: Engine components, transmission shafts, sensor housings, and fuel system fittings
- Aerospace: Lightweight structural parts, aircraft fasteners, and precision shafts meeting stringent standards
- Medical & Dental: Surgical instrument parts, implantable device components, and diagnostic equipment shafts requiring biocompatibility
- Electronics & Industrial: Connector pins, semiconductor parts, hydraulic/pneumatic fittings, valve bodies, and custom shafts for machinery
Our Product Portfolio
We manufacture a diverse array of turned components, including:
- Shafts & Pins: Precision shafts, axles, dowel pins, and studs
- Fasteners & Connectors: Specialized bolts, screws, standoffs, spacers, bushings, and couplings
- Complex Fittings: Hydraulic and pneumatic fittings (elbows, tees, adapters), nozzles, and valve components
- Custom Components: Any custom-designed part based on your technical drawings or samples
Why Partner With Us?
- Uncompromising Quality: Rigorous in-process and final inspection using advanced measuring equipment (CMMs, optical comparators) ensures every part meets exact specifications
- Technical Collaboration: Our engineering team provides expert DFM (Design for Manufacturability) feedback to optimize your part for performance, cost, and lead time
- Supply Chain Reliability: Consistent on-time delivery, supported by flexible production planning and transparent communication
- Competitive Value: Optimized processes and economies of scale allow us to offer superior quality at competitive prices, maximizing your ROI
- Confidentiality & IP Protection: Your designs and projects are handled with the utmost security and professionalism
Your Trusted Manufacturing Solution
Whether you need a small batch of prototype parts or a sustained, high-volume production supply, we are equipped to be your seamless extension. We specialize in OEM & ODM manufacturing, ready to work from your drawings or collaborate on custom designs.
Contact Us Today to request a competitive quotation, discuss your project specifications, or learn more about how our precision CNC turning services can enhance your supply chain.
