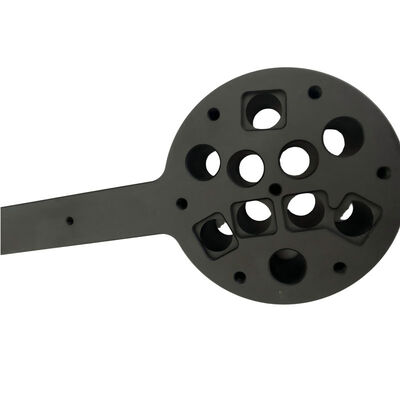

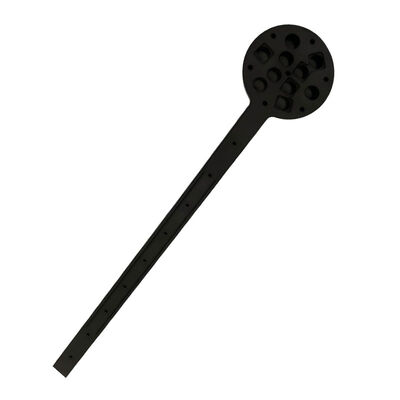

ISO9001 Certified CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning Milling |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | SS | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Milling Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning Milling |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ISO9001 Certified CNC Turning Milling Parts,±0.002~0.005mm Tolerance CNC Machined Components,100% Inspection Precision Machined Parts |
||
Product Description
OEM CNC Turning Milling Components for Machinery Spindles
Precision CNC turning and milling components specifically designed for machinery spindles, manufactured to exact OEM specifications with superior quality and reliability.
CNC Turning Milling Parts Specifications
| Product Name | CNC Turning Milling Parts |
|---|---|
| Material Available | Stainless Steel (SS) |
| Surface Finish | Black Oxidation |
| Processing | CNC Turning Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning-Milling Features
CNC turning-milling parts feature one-step machining precision, minimal setup errors, and support for complex geometries including both rotational and prismatic features. With tight dimensional tolerances, smooth surface finishes, and excellent batch consistency, they suit fast-paced production demands while maintaining high quality.
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment/Process | Capability | Typical Tolerances |
|---|---|---|---|
| CNC Turning | Live tooling on mills, separate lathes | Turning features on milled parts | ±0.01mm |
| Grinding | Surface, cylindrical, jig grinders | Precision flatness, parallelism, size | ±0.002mm |
| EDM | Wire and sinker EDM | Complex geometries, hard materials | ±0.005mm |
| Heat Treatment | Vacuum furnaces, atmosphere controlled | Hardening, tempering, stress relief | Material dependent |
| Welding | TIG, laser, electron beam | Component assembly, repair | ±0.05mm after weld |
| Assembly | Press fits, adhesive, fastening | Multi-component assemblies | As per drawing |
Surface Finishing Options
| Finish Type | Process Method | Surface Ra (μm) | Characteristics & Applications |
|---|---|---|---|
| As-Machined | Standard CNC milling | 0.8-3.2 | Cost-effective, visible tool marks, general applications |
| Bead Blasting | Glass bead, aluminum oxide | 0.8-1.6 | Matte finish, uniform appearance, stress relief |
| Polishing | Mechanical, chemical, electro | 0.025-0.4 | Reflective, smooth, food, medical, optical |
| Anodizing | Type I-III, hardcoat (Al) | Base material dependent | Decorative, corrosion resistant, wear resistant |
| Plating | Nickel, chrome, zinc, tin | Varies | Corrosion protection, appearance, solderability |
| Powder Coating | Electrostatic application | N/A (coating) | Durable, color options, corrosion protection |
| Passivation | Nitric or citric acid (SS) | Base material finish | Corrosion resistance restoration |
| Laser Marking | Fiber, YAG lasers | N/A (marking) | Permanent identification, serialization, logos |
| Tumbling/Vibratory | Media finishing | 0.4-1.6 | Deburring, edge breaking, surface smoothing |
Quality Assurance & Inspection
Inspection Equipment & Capabilities
- CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
- Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
- Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
- Roundness/Form Testers: Cylindricity, concentricity, flatness verification
- Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
- Portable Arms: Articulated arms with laser scanner for large parts
- Digital Height Gauges: Precision height measurement with 0.001mm resolution
- Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
- Force/Torque Measurement: For assembly validation, spring constant verification
Quality Management System
- ISO 9001:2015 Certified: Full quality management system implementation
- First Article Inspection: AS9102, PPAP, or custom FAIR documentation
- Statistical Process Control: Real-time monitoring of critical characteristics
- Material Certification: Mill test reports, material traceability to heat/lot
- Calibration Program: All inspection equipment calibrated to NIST-traceable standards
- Document Control: Revision-controlled drawings, specifications, procedures
- Non-Conformance System: Documented containment, root cause analysis, corrective action
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
