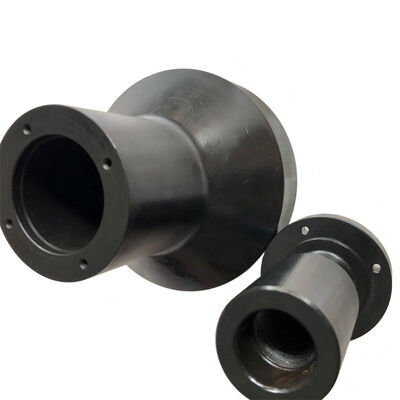

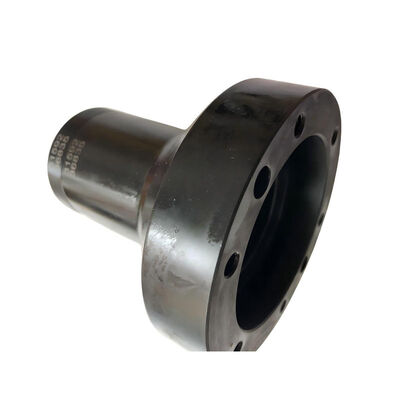

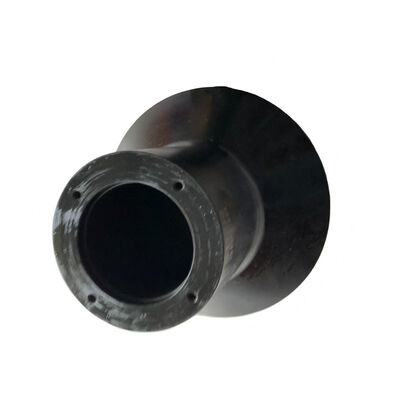

ISO9001 Certified CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning Milling |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | SS | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Milling Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning Milling |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ISO9001 Certified CNC Turning Milling Parts,±0.002~0.005mm Tolerance CNC Machined Components,100% Inspection Precision Machined Parts |
||
Product Description
CNC Turning Milling Steel Shafts
Precision CNC turning and milling services for steel shafts and components, delivering exceptional dimensional accuracy and structural complexity.
CNC Turning Milling Parts Specifications
| Product Name | CNC Turning Milling Parts |
|---|---|
| Material Available | Stainless Steel (SS) |
| Processing | CNC Turning Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning-Milling Features
CNC turning-milling parts integrate the dual advantages of turning and milling processes, delivering exceptional precision, dimensional stability and structural complexity. Capable of completing turning, drilling, tapping, milling and other multi-step operations in a single setup, these parts minimize clamping errors and boost production efficiency significantly. They are widely applied in manufacturing high-precision components for automotive, aerospace, precision instrumentation and other industries, perfectly meeting the rigorous performance requirements of sophisticated mechanical systems.
Manufacturing Capabilities & Equipment Specifications
A. CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
B. Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Material Expertise & Machinability
A. Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
B. Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
