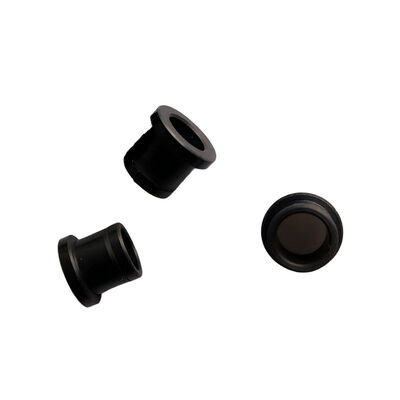

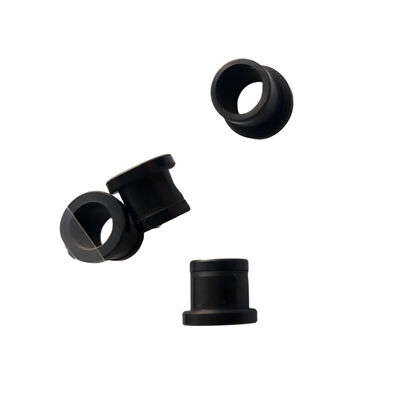

High Precision CNC Turning Parts with ±0.002~0.005mm Tolerance and Anodizing Plated Finish for Transmission Shafts
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Turning Parts,Anodizing and Plated Surface Finish CNC Turning Parts,ISO9001 Certified CNC Turning Parts |
||
Product Description
CNC Turning with Anodizing and Plated Turned Parts for Transmission Shafts
Precision CNC turning services with anodizing and plating capabilities for transmission shafts and other critical components.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Surface Finish | Black Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Characteristics
CNC turning parts offer high precision (tolerances up to ±0.005mm) and consistent quality, ensuring they fit perfectly in assemblies. They have smooth surface finishes (Ra 0.8-3.2μm) and can be made into different shapes—like cylindrical, threaded, or grooved designs—to match various industrial needs. These parts work with many materials (aluminum, steel, stainless steel, brass) and provide good durability, including wear and corrosion resistance. They're produced efficiently, support small-batch or mass customization, and are widely used in automotive, electronics, hardware, and aerospace industries.
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment Used | Capability/Specification |
|---|---|---|
| CNC Milling | 3/4/5-axis mills | Cross-holes, flats, keyways, complex features |
| Drilling/Tapping | CNC drill units | Deep hole (up to 10* diameter), micro-drilling (Ø0.3mm+) |
| Grinding | Cylindrical grinders | ID/OD grinding, surface grinding |
| Heat Treatment | Vacuum furnaces | Hardening, tempering, stress relieving, annealing |
| Welding | TIG, laser welders | Precision welding for assemblies |
| Assembly | Cleanroom facilities | Press fits, adhesive bonding, mechanical fastening |
Surface Finishes
| Finish Type | Process | Typical Ra Value | Characteristics |
|---|---|---|---|
| As-Machined | CNC turned | 0.8-3.2μm | Cost-effective, tool marks visible |
| Polished | Mechanical polishing | 0.1-0.4μm | Reflective, smooth, cosmetic quality |
| Anodized | Type II/III anodizing | 0.4-1.6μm | Decorative, corrosion resistant (Al) |
| Plated | Electroplating | Varies | Chrome, nickel, zinc, tin coatings |
| Passivated | Chemical treatment | Base material finish | Corrosion resistance (stainless) |
| Painted/Powder Coated | Spray application | Varies | Color options, additional protection |
| Black Oxide | Chemical conversion | Base material finish | Mild corrosion resistance, appearance |
Quality Assurance & Inspection
Inspection Equipment
- Multi-Sensor CMMs: 3D measurement with 0.001mm accuracy
- Optical Comparators: Profile projection with 20* to 100* magnification
- Surface Roughness Testers: Portable and benchtop Ra/Rz measurement
- Hardness Testers: Rockwell, Brinell, Vickers, and micro-hardness
- Thread Gauges: Complete sets to ISO/ANSI standards
- Digital Calipers/Micrometers: 0.001mm resolution, calibrated regularly
- Roundness Testers: Concentricity and cylindricity measurement
- Force Measurement: Torque testing, spring constant verification
Quality Certifications & Processes
- ISO 9001:2015 certified quality management system
- First Article Inspection (FAIR): AS9102/PPAP documentation available
- Statistical Process Control (SPC): Real-time monitoring of critical dimensions
- Material Traceability: Mill test certificates, heat/lot number tracking
- Calibration Program: All inspection equipment calibrated to NIST standards
- Document Control: Revision-controlled drawings and specifications
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase: Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Customization & Special Capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20* diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
