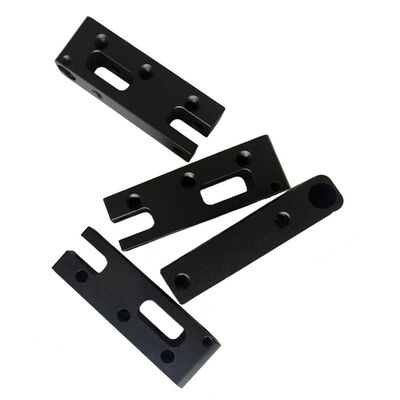

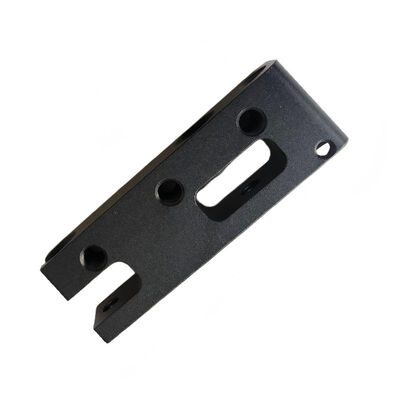

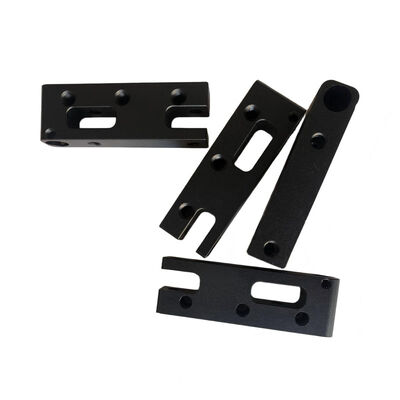

5-Axis CNC Milled Parts with ±0.002~0.005mm Tolerance and ISO9001 Certified Precision
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | 5-Axis CNC Milled Parts,±0.002~0.005mm Tolerance CNC Machined Components,ISO9001 Certified Precision Milled Parts |
||
Product Description
Complex 5-Axis CNC Milled Prototype and Multi-Surface CNC Milled Mold Insert
CNC Milling Parts Specification
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Steel |
| Surface Finish | Black Oxidation |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Key Features
CNC milling parts feature high precision and excellent surface finish. They can meet tight tolerance requirements and realize complex structural shapes. With stable quality and customizable design, they are suitable for various materials and widely used in industrial production.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500*400 to 1500*800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400*400 to 800*600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500*500 to 1200*800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000*1000 to 5000*2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400*400 to 800*600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm * 600mm * 500mm
- Gantry machines: 5000mm * 2500mm * 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Design Support & Engineering Services
Design for Manufacturing (DFM) Analysis
- Manufacturability Review: Identification of potential production issues
- Cost Reduction Analysis: Alternative approaches, material optimization
- Tolerance Analysis: Statistical tolerance stacking, specification review
- Fixture/Tooling Design: Custom workholding solutions for complex parts
- Process Optimization: Sequencing, tool selection, cycle time reduction
CAD/CAM Capabilities
- CAD Software: SolidWorks, CATIA, UG/NX, Autodesk Inventor, AutoCAD
- CAM Software: Mastercam, HyperMILL, PowerMILL, CATIA, UG/NX
- Simulation: Virtual machining verification, collision detection, material removal simulation
- Reverse Engineering: 3D scanning (laser, structured light) to CAD model conversion
- Prototyping: Rapid prototyping support via 3D printing for design validation
Specialized Engineering Services
- Finite Element Analysis: Stress, thermal, modal analysis for component optimization
- Fluid Dynamics: Flow analysis for manifolds, fluid system components
- Thermal Analysis: Heat sink performance, thermal management solutions
- Drafting & Documentation: Creation of manufacturing drawings, GD&T application
Ordering Process & Lead Times
Standard Quotation & Order Process
- RFQ Submission: Provide drawings (PDF/DWG), 3D models (STEP/IGES/SLDPRT), specifications
- Technical Review: Engineering assessment, DFM analysis, process planning (24-48 hour response)
- Quotation: Detailed pricing with breakdown (material, setup, machining, finishing)
- Prototype Phase: Sample production with full inspection report
- Production Approval: Process validation, inspection plan agreement
- Manufacturing: Scheduled production with milestone updates (weekly/daily)
- Final Inspection: Complete FAIR or dimensional report before shipping
- Delivery: Appropriate packaging, shipping with tracking, customs documentation
Lead Time Guidelines
| Production Type | Standard Lead Time | Expedited Options | Factors Affecting Lead Time |
|---|---|---|---|
| Prototype (1-10 pcs) | 5-15 business days | 3-5 days (+30-50%) | Material availability, complexity, fixturing |
| Low Volume (10-100 pcs) | 10-25 business days | 5-10 days (+25-40%) | Tooling requirements, secondary operations |
| Medium Volume (100-1,000 pcs) | 3-5 weeks | 2-3 weeks (+20-35%) | Production scheduling, capacity |
| High Volume (1,000+ pcs) | 6-12 weeks | 4-8 weeks (+15-30%) | Material procurement, dedicated production runs |
| Large Parts (>1m dimension) | 4-10 weeks | 3-6 weeks (+25-50%) | Special handling, machine availability |
Packaging, Shipping & Logistics
Packaging Solutions
- Standard Packaging: Poly bags with desiccant in partitioned cartons
- ESD-Sensitive: Antistatic bags, conductive foam, static-dissipative containers
- Cleanroom Packaging: Double-bagged, cleanroom compatible materials
- VCI Protection: Volatile corrosion inhibitor papers/films for ferrous metals
- Custom Fixturing: CNC-machured foam inserts, custom racks, reusable containers
- International Shipping: Export-rated crates, climate-controlled options available
Logistics & Supply Chain
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Export Documentation: Commercial invoice, packing list, certificate of origin
- Compliance Documentation: Material certifications, RoHS/REACH declarations
- Inventory Management: Consignment stock, bonded warehousing, kanban systems
- Just-In-Time Delivery: Scheduled deliveries aligned with production schedules
