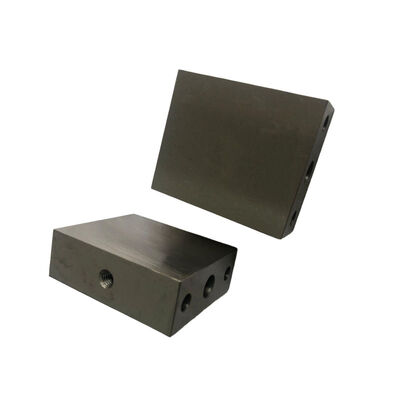

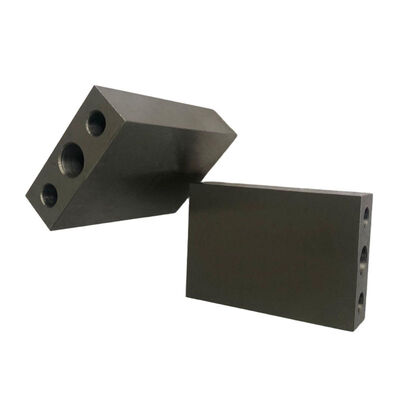

ISO9001 Certified Precision CNC Milling Parts with ±0.002~0.005mm Tolerance and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Brass | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ISO9001 Certified CNC Milling Parts,±0.002~0.005mm Tolerance CNC Machined Parts,100% Inspection Precision Machined Components |
||
Product Description
ISO9001 Certified Precision CNC Milling Parts
Our ISO9001 certified precision CNC milling parts with secondary operations deliver exceptional quality and reliability for industrial applications.
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Brass |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Key Features
CNC milling parts feature high precision and excellent surface finish. They can meet tight tolerance requirements and realize complex structural shapes. With stable quality and customizable design, they are suitable for various materials and widely used in industrial production.
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment/Process | Capability | Typical Tolerances |
|---|---|---|---|
| CNC Turning | Live tooling on mills, separate lathes | Turning features on milled parts | ±0.01mm |
| Grinding | Surface, cylindrical, jig grinders | Precision flatness, parallelism, size | ±0.002mm |
| EDM | Wire and sinker EDM | Complex geometries, hard materials | ±0.005mm |
| Heat Treatment | Vacuum furnaces, atmosphere controlled | Hardening, tempering, stress relief | Material dependent |
| Welding | TIG, laser, electron beam | Component assembly, repair | ±0.05mm after weld |
| Assembly | Press fits, adhesive, fastening | Multi-component assemblies | As per drawing |
Surface Finishing Options
| Finish Type | Process Method | Surface Ra (μm) | Characteristics & Applications |
|---|---|---|---|
| As-Machined | Standard CNC milling | 0.8-3.2 | Cost-effective, visible tool marks, general applications |
| Bead Blasting | Glass bead, aluminum oxide | 0.8-1.6 | Matte finish, uniform appearance, stress relief |
| Polishing | Mechanical, chemical, electro | 0.025-0.4 | Reflective, smooth, food, medical, optical |
| Anodizing | Type I-III, hardcoat (Al) | Base material dependent | Decorative, corrosion resistant, wear resistant |
| Plating | Nickel, chrome, zinc, tin | Varies | Corrosion protection, appearance, solderability |
| Powder Coating | Electrostatic application | N/A (coating) | Durable, color options, corrosion protection |
| Passivation | Nitric or citric acid (SS) | Base material finish | Corrosion resistance restoration |
| Laser Marking | Fiber, YAG lasers | N/A (marking) | Permanent identification, serialization, logos |
| Tumbling/Vibratory | Media finishing | 0.4-1.6 | Deburring, edge breaking, surface smoothing |
Inspection Equipment & Capabilities
- CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
- Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
- Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
- Roundness/Form Testers: Cylindricity, concentricity, flatness verification
- Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
- Portable Arms: Articulated arms with laser scanner for large parts
- Digital Height Gauges: Precision height measurement with 0.001mm resolution
- Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
- Force/Torque Measurement: For assembly validation, spring constant verification
Target Industries & Applications
Aerospace & Defense
- Components: Structural frames, brackets, housings, turbine components, fittings
- Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
- Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
- Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
- Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
- Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
- Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
- Components: Engine parts, transmission housings, suspension components, brackets
- Materials: Aluminum, various steels, brass, magnesium (racing)
- Production Volumes: Prototype to high-volume (10,000+ parts)
- Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
- Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
- Materials: Aluminum, copper, engineering plastics, composites
- Precision Requirements: Often ±0.005mm or better, micron-level flatness
- Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
- Components: Machine frames, brackets, guides, robotic components, fixture
- Materials: Carbon steel, aluminum, stainless, cast iron
- Requirements: Wear resistance, dimensional stability, rigidity
- Capabilities: Large part machining, weldment preparation, assembly interfaces
Packaging, Shipping & Logistics
Packaging Solutions
- Standard Packaging: Poly bags with desiccant in partitioned cartons
- ESD-Sensitive: Antistatic bags, conductive foam, static-dissipative containers
- Cleanroom Packaging: Double-bagged, cleanroom compatible materials
- VCI Protection: Volatile corrosion inhibitor papers/films for ferrous metals
- Custom Fixturing: CNC-machured foam inserts, custom racks, reusable containers
- International Shipping: Export-rated crates, climate-controlled options available
Logistics & Supply Chain
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Export Documentation: Commercial invoice, packing list, certificate of origin
- Compliance Documentation: Material certifications, RoHS/REACH declarations
- Inventory Management: Consignment stock, bonded warehousing, kanban systems
- Just-In-Time Delivery: Scheduled deliveries aligned with production schedules
