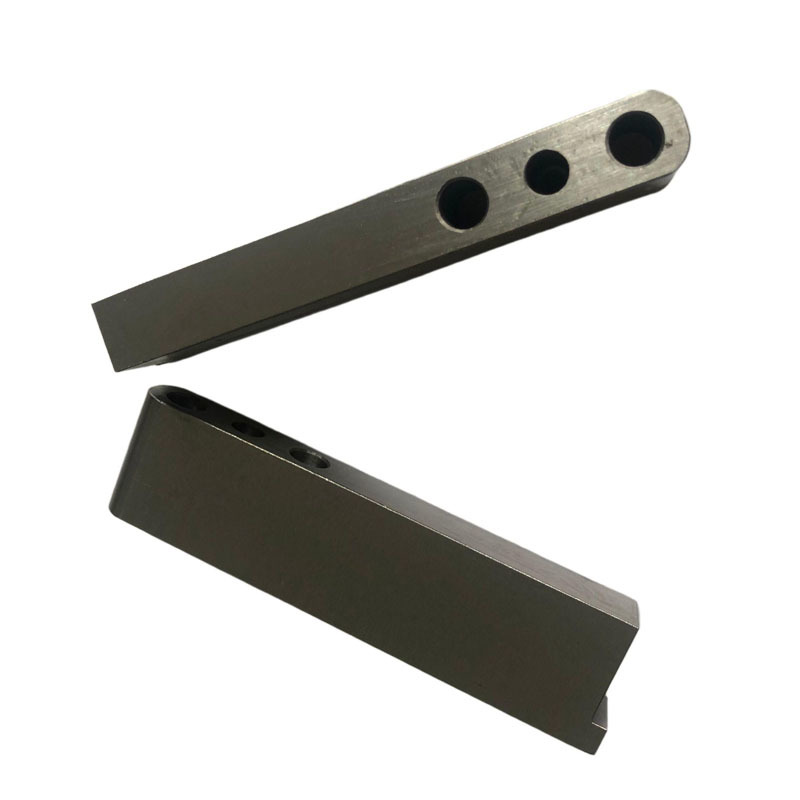

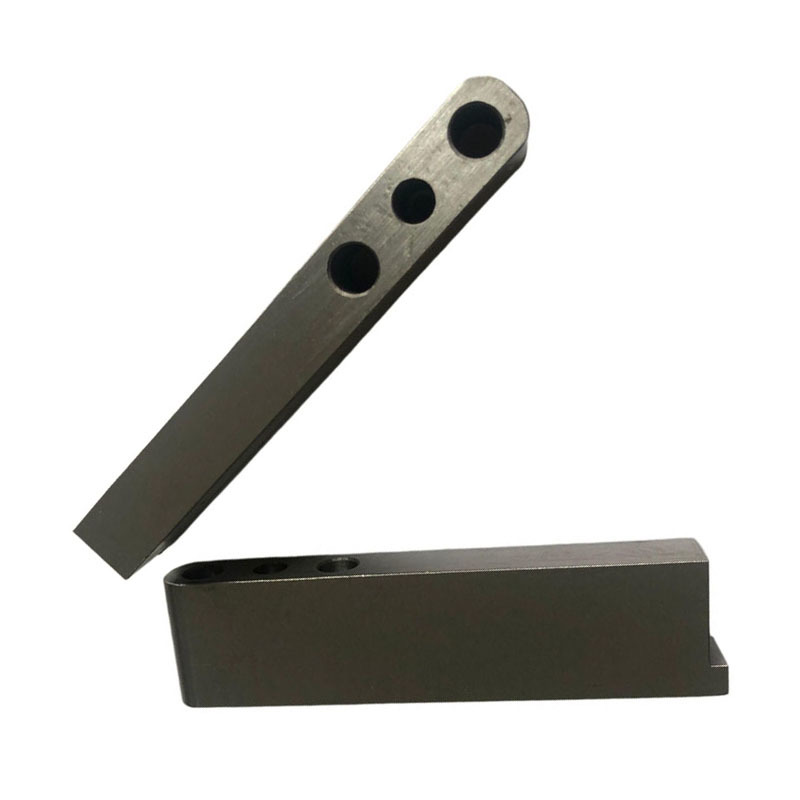

High-Accuracy CNC Milled Bracket for Flat Panels
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified Precision CNC Milled Components,100% Inspection CNC Machined Parts |
||
Product Description
High-Accuracy CNC Milled Bracket for Flat Panels
High-accuracy CNC milling for flat panels and custom brackets with exceptional precision and quality control.
CNC Milling Parts Specifications
| Product Name | Precision CNC Milling Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Key Features
- Exceptional Precision & Tolerance Control: Achieves tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production, eliminating human-induced errors.
- Versatile Material Compatibility: Suitable for processing aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials with excellent adaptability.
- Complex Geometry Machining Capability: Capable of creating intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment/Process | Capability | Typical Tolerances |
|---|---|---|---|
| CNC Turning | Live tooling on mills, separate lathes | Turning features on milled parts | ±0.01mm |
| Grinding | Surface, cylindrical, jig grinders | Precision flatness, parallelism, size | ±0.002mm |
| EDM | Wire and sinker EDM | Complex geometries, hard materials | ±0.005mm |
| Heat Treatment | Vacuum furnaces, atmosphere controlled | Hardening, tempering, stress relief | Material dependent |
| Welding | TIG, laser, electron beam | Component assembly, repair | ±0.05mm after weld |
| Assembly | Press fits, adhesive, fastening | Multi-component assemblies | As per drawing |
Surface Finishing Options
| Finish Type | Process Method | Surface Ra (μm) | Characteristics & Applications |
|---|---|---|---|
| As-Machined | Standard CNC milling | 0.8-3.2 | Cost-effective, visible tool marks, general applications |
| Bead Blasting | Glass bead, aluminum oxide | 0.8-1.6 | Matte finish, uniform appearance, stress relief |
| Polishing | Mechanical, chemical, electro | 0.025-0.4 | Reflective, smooth, food, medical, optical |
| Anodizing | Type I-III, hardcoat (Al) | Base material dependent | Decorative, corrosion resistant, wear resistant |
| Plating | Nickel, chrome, zinc, tin | Varies | Corrosion protection, appearance, solderability |
| Powder Coating | Electrostatic application | N/A (coating) | Durable, color options, corrosion protection |
| Passivation | Nitric or citric acid (SS) | Base material finish | Corrosion resistance restoration |
| Laser Marking | Fiber, YAG lasers | N/A (marking) | Permanent identification, serialization, logos |
| Tumbling/Vibratory | Media finishing | 0.4-1.6 | Deburring, edge breaking, surface smoothing |
Quality Assurance & Inspection
Inspection Equipment & Capabilities
- CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled
- Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification
- Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements
- Roundness/Form Testers: Cylindricity, concentricity, flatness verification
- Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness
- Portable Arms: Articulated arms with laser scanner for large parts
- Digital Height Gauges: Precision height measurement with 0.001mm resolution
- Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards
- Force/Torque Measurement: For assembly validation, spring constant verification
Quality Management System
- ISO 9001:2015 Certified: Full quality management system implementation
- First Article Inspection: AS9102, PPAP, or custom FAIR documentation
- Statistical Process Control: Real-time monitoring of critical characteristics
- Material Certification: Mill test reports, material traceability to heat/lot
- Calibration Program: All inspection equipment calibrated to NIST-traceable standards
- Document Control: Revision-controlled drawings, specifications, procedures
- Non-Conformance System: Documented containment, root cause analysis, corrective action
Material Science
- 6061-T6 Aluminum Alloy: The balanced choice, offering excellent strength, machinability, and corrosion resistance at a high value. Ideal for most high-performance components.
- 7075-T6 Aluminum Alloy: The premium choice. With strength approaching many steels, it's used for components under extreme stress to deliver the ultimate strength-to-weight ratio.
- Titanium Alloy (TC4): Used for top-tier components where supreme corrosion resistance, exceptional fatigue strength, and a unique aesthetic are paramount.
Comprehensive Quality Assurance
- Full-Process QC: Strict control from raw material inspection (spectral analysis) to First Article Inspection (FAI), In-Process Quality Control (IPQC), and Final Quality Control (FQC) before shipment.
- Rigorous Testing: We test critical parts to, or beyond, international standards for fatigue, impact, and static load. Third-party test reports are available upon request.
- Full Traceability: Each production batch is fully documented, ensuring consistent quality and accountability.
OEM & ODM Service Capabilities
We are not just a manufacturer, but your R&D partner.
- Custom Machining from Drawings/Samples: We can produce parts precisely according to your provided 3D files (STEP, IGES, X_T) or physical samples.
- Co-Design & Engineering Support: Our engineering team can assist with design optimization, weight reduction analysis, and manufacturing feasibility reviews.
- Low-MOQ & Prototyping: We support low-volume, high-mix orders and offer rapid prototyping to accelerate your product development cycle.
- Brand Customization: Custom branding via laser etching or CNC engraving is available.
Packaging & Logistics
- Premium Packaging: Each component is individually packed in anti-scratch PE bags or bubble wrap, placed in custom foam/EVA-divided cartons or color boxes to guarantee zero damage during transit.
- Efficient Logistics: With extensive export experience, we arrange sea/air freight or courier services and handle all necessary shipping documents for smooth customs clearance.
