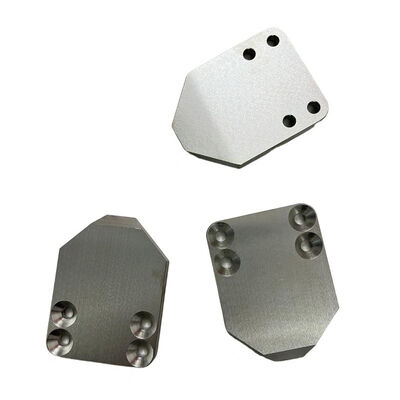

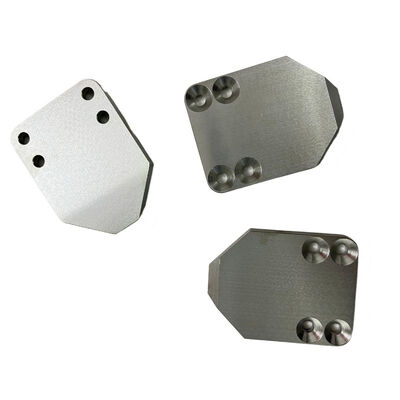

Precision CNC Milling Parts with ±0.002~0.005mm Tolerance ISO9001 Certified and 100% Inspection for Prototype to Production CNC Milled
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Product Process | CNC Milling | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,or Samples |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. | Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components |
| Highlight | ±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified Precision Machined Components,100% Inspection CNC Machined Parts |
||
Product Description
Precision CNC Milling Services for Prototype to Production CNC Milled
We provide comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.
CNC Milling Parts Specifications
| Specification | Details |
|---|---|
| Place of Origin | China |
| Brand Name | iMission |
| Material | Steel |
| Size | Support design |
| Color | Material Color or Customized |
| Thickness | 0.5-20.0mm or Customized |
| Processing | CNC Milling |
| Certificate | ISO9001 |
| MOQ | 1 PC |
| Lead time | 7-35 Working Days |
| Precision | +/-0.002~0.005mm |
Packaging and Delivery
| Aspect | Details |
|---|---|
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Parts Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
- Versatile Material Compatibility: Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
- Complex Geometry Machining: Create intricate 3D contours, deep pockets, internal threads, and custom cavities
Manufacturing Capabilities & Equipment
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Material Expertise
Metals & Alloys
| Material Group | Specific Grades | Machinability Rating | Recommended Cutting Parameters | Primary Applications |
|---|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083, MIC-6 | Excellent | HS: 600-3000 m/min, DOC: 0.5-5mm | Aerospace, automotive, electronics, enclosures |
| Stainless Steels | 303, 304, 316, 17-4PH, 15-5PH, 416 | Fair to Good | HS: 50-120 m/min, DOC: 0.5-3mm | Medical, marine, chemical, food processing |
| Tool Steels | D2, A2, O1, H13, P20, S7 | Fair to Difficult | HS: 40-100 m/min, DOC: 0.2-2mm | Molds, dies, tooling, wear components |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340, 8620 | Good to Excellent | HS: 100-250 m/min, DOC: 1-5mm | Machine components, automotive, industrial |
| Titanium Alloys | Grade 2, Grade 5 (Ti6Al4V), Grade 23 | Difficult | HS: 30-70 m/min, DOC: 0.5-2mm | Aerospace, medical implants, chemical |
| Copper Alloys | C110, C360, C172, C932 | Excellent to Good | HS: 150-500 m/min, DOC: 0.5-4mm | Electrical, thermal, bearing, decorative |
| High-Temp Alloys | Inconel 718, Hastelloy, Waspaloy | Very Difficult | HS: 10-30 m/min, DOC: 0.2-1mm | Aerospace, turbine, extreme environment |
| Magnesium Alloys | AZ31B, AZ91D, WE43 | Excellent (with precautions) | HS: 300-1500 m/min, DOC: 1-5mm | Aerospace, racing, electronics (lightweight) |
Non-Metallic Materials
| Material Type | Specific Varieties | Key Considerations | Applications |
|---|---|---|---|
| Engineering Plastics | PEEK, Delrin, Nylon, PTFE, POM, UHMW | Low thermal conductivity, prone to melting, vibration damping | Medical, bearings, insulators, low friction |
| Advanced Composites | Carbon Fiber, G10/FR4, Fiberglass | Abrasive, layered structure, delamination risk | Aerospace, sporting goods, electronics |
| Precision Ceramics | Alumina, Zirconia, Macor | Extremely hard, brittle, specialized tooling required | Semiconductor, medical, wear components |
| Graphite & EDM Materials | ISO-63, POCO, GrafTech | Dust control, specialized tooling | EDM electrodes, thermal, crucibles |
Target Industries & Applications
Aerospace & Defense
Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces
