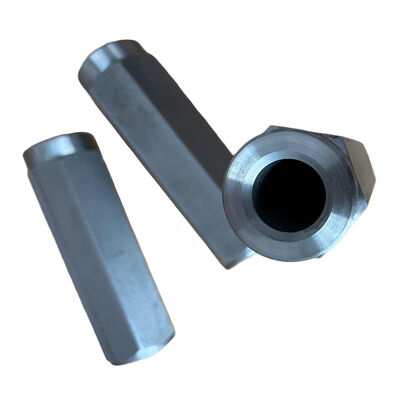

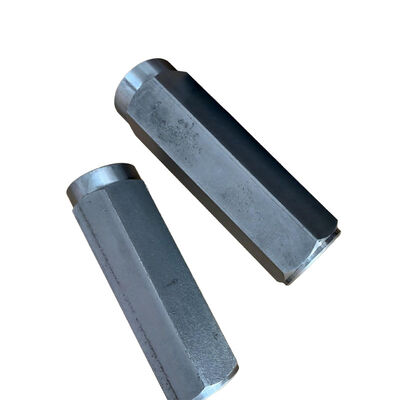

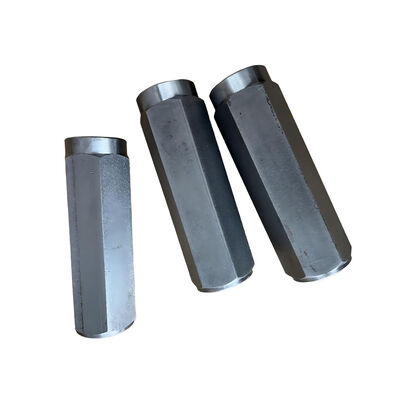

High Precision CNC Turning Milling Parts Aluminum Hydraulic Fittings with ±0.002~0.005mm Tolerance ISO9001 Certified and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning Milling |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Aluminum | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Milling Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning Milling |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Turning Milling Parts,ISO9001 Certified CNC Machined Components,100% Inspection Precision Machined Parts |
||
Product Description
Precision CNC Turning Milling Parts Aluminum Hydraulic Fittings
Expert supplier of stainless steel hydraulic fittings and custom precision components through advanced CNC turning and milling technologies.
CNC Turning Milling Specifications
| Product Name | CNC Turning Milling Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC Turning Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Milling Parts Features
Our CNC turning-milling parts deliver unmatched versatility and cost-efficiency for custom component needs. By combining turning (for cylindrical, conical, and threaded features) and milling (for flat surfaces, pockets, and complex profiles) in one machining cycle, we cut lead times by up to 30% and reduce production costs compared to traditional multi-step processes. These parts boast exceptional repeatability, robust structural integrity, and compatibility with a wide range of materials—including aluminum alloys, stainless steel, brass, and engineering plastics—to meet diverse industry requirements.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm × 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm × 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm × 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm × 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances:
Concentricity: 0.005mm
Cylindricity: 0.008mm
True Position: 0.01mm
Thread Machining Capabilities:
Metric/Unified/Whitworth threads
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances:
Concentricity: 0.005mm
Cylindricity: 0.008mm
True Position: 0.01mm
Thread Machining Capabilities:
Metric/Unified/Whitworth threads
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
Composites: Carbon fiber reinforced, fiberglass composites
Special Materials: Ceramics (machinable grades), graphite, engineered woods
Composites: Carbon fiber reinforced, fiberglass composites
Special Materials: Ceramics (machinable grades), graphite, engineered woods
Why Partner With Us?
- Uncompromising Quality: Rigorous in-process and final inspection using advanced measuring equipment (CMMs, optical comparators) ensures every part meets exact specifications.
- Technical Collaboration: Our engineering team provides expert DFM (Design for Manufacturability) feedback to optimize your part for performance, cost, and lead time.
- Supply Chain Reliability: Consistent on-time delivery, supported by flexible production planning and transparent communication.
- Competitive Value: Optimized processes and economies of scale allow us to offer superior quality at competitive prices, maximizing your ROI.
- Confidentiality & IP Protection: Your designs and projects are handled with the utmost security and professionalism.
Your Trusted Manufacturing Solution
Whether you need a small batch of prototype parts or a sustained, high-volume production supply, we are equipped to be your seamless extension. We specialize in OEM & ODM manufacturing, ready to work from your drawings or collaborate on custom designs.
Contact Us Today
Request a competitive quotation, discuss your project specifications, or learn more about how our precision CNC turning services can enhance your supply chain.
