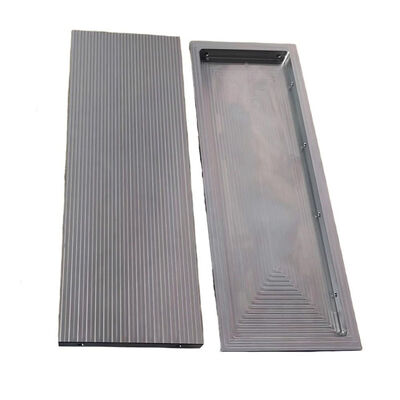

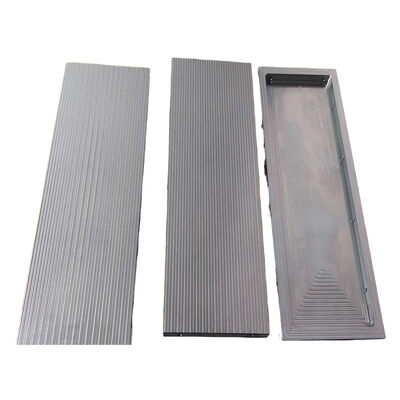

ISO9001 Certified CNC Milling Parts with ±0.002~0.005mm Tolerance and 100% Inspection for Medical Devices
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Product Process | CNC Milling | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,or Samples |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. | Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components |
| Highlight | ISO9001 Certified CNC Milling Parts,±0.002~0.005mm Tolerance CNC Machined Components,100% Inspection Precision Milled Parts |
||
Product Description
Medical Device CNC Milled Casing Support
OEM & ODM precision manufacturing services for medical device casing support components through advanced CNC milling technology.
CNC Milling Components Specifications
| Specification | Details |
|---|---|
| Place of Origin | China |
| Brand Name | iMission |
| Material | Steel |
| Size | Support design |
| Color | Material Color or Customized |
| Thickness | 0.5-20.0mm or Customized |
| Processing | CNC Milling |
| Certificate | ISO9001 |
| MOQ | 1 PC |
| Lead time | 7-35 Working Days |
| Precision | +/-0.002~0.005mm |
Packaging and Delivery
| Aspect | Details |
|---|---|
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Components Key Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
- Versatile Material Compatibility: Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
- Complex Geometry Machining: Create intricate 3D contours, deep pockets, internal threads, and custom cavities
Secondary Operations & Finishing
Value-Added Services
| Operation | Equipment Used | Capability/Specification |
|---|---|---|
| CNC Milling | 3/4/5-axis mills | Cross-holes, flats, keyways, complex features |
| Drilling/Tapping | CNC drill units | Deep hole (up to 10* diameter), micro-drilling (Ø0.3mm+) |
| Grinding | Cylindrical grinders | ID/OD grinding, surface grinding |
| Heat Treatment | Vacuum furnaces | Hardening, tempering, stress relieving, annealing |
| Welding | TIG, laser welders | Precision welding for assemblies |
| Assembly | Cleanroom facilities | Press fits, adhesive bonding, mechanical fastening |
Surface Finishes
| Finish Type | Process | Typical Ra Value | Characteristics |
|---|---|---|---|
| As-Machined | CNC turned | 0.8-3.2μm | Cost-effective, tool marks visible |
| Polished | Mechanical polishing | 0.1-0.4μm | Reflective, smooth, cosmetic quality |
| Anodized | Type II/III anodizing | 0.4-1.6μm | Decorative, corrosion resistant (Al) |
| Plated | Electroplating | Varies | Chrome, nickel, zinc, tin coatings |
| Passivated | Chemical treatment | Base material finish | Corrosion resistance (stainless) |
| Painted/Powder Coated | Spray application | Varies | Color options, additional protection |
| Black Oxide | Chemical conversion | Base material finish | Mild corrosion resistance, appearance |
Customization & Service Workflow
Design Support Services
- DFM Analysis: Design for manufacturability review within 24 hours of drawing submission
- Engineering Collaboration: Co-development with customer engineering teams
- Rapid Prototyping: 3D printing (SLA, SLS, MJF) available for concept validation
Order Process
- Quotation Request: Submit drawings (DXF, DWG, PDF) or 3D models (STEP, IGES, SLDPRT)
- Technical Review: Engineering assessment of materials, tolerances, and finishing
- Commercial Proposal: Detailed quotation including unit pricing, tooling costs, lead time
- Prototype Approval: Sample production with inspection report submission
- Production Release: Scheduled manufacturing with milestone updates
- Quality Verification: Final inspection report prior to shipping
- Delivery & Support: Tracking information and post-sales technical assistance
Competitive Advantages
Technical Expertise
- 12+ years average experience among engineering staff
- Dedicated project management for each account
- Continuous process optimization through Six Sigma methodologies
Supply Chain Reliability
- Long-term partnerships with certified material suppliers
- Risk mitigation through multi-source material procurement
- Inventory management programs for repeat components
Global Compliance
- ISO 9001:2015 certified quality management system
- Conflict-free mineral sourcing documentation
- REACH and RoHS compliance for applicable materials
