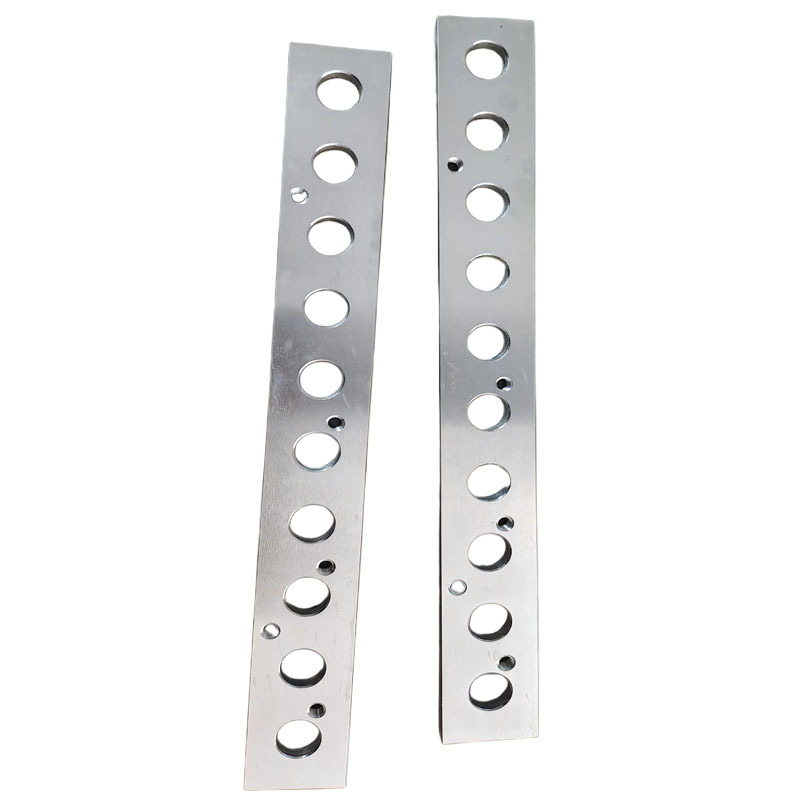

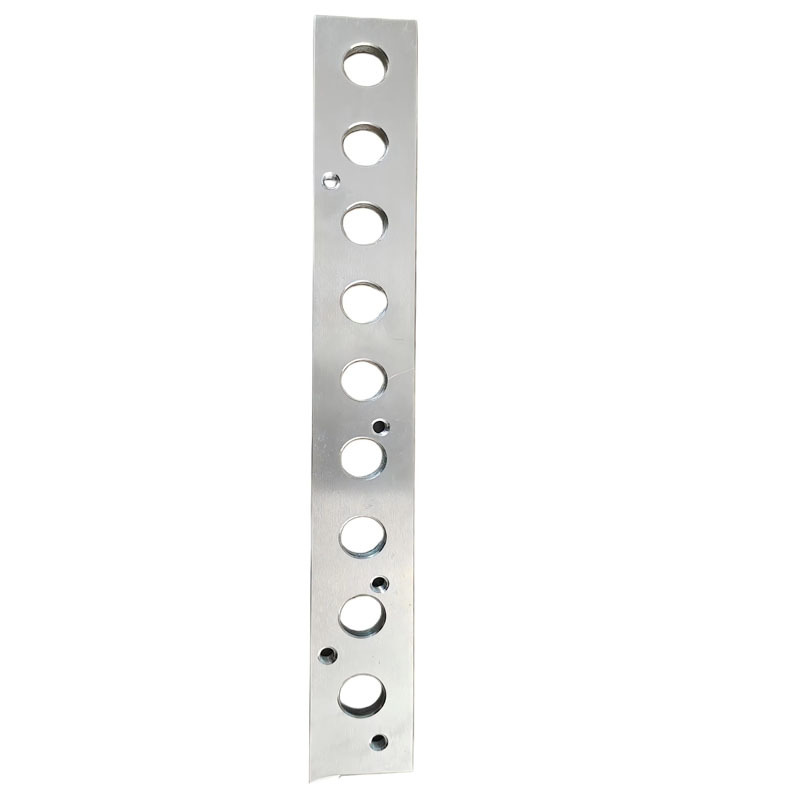

High Precision ISO9001 Certified CNC Milling Parts with Versatile Material Compatibility
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Aluminum | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Product Process | CNC Milling | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,or Samples |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. | Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components |
| Highlight | High Precision CNC Milling Parts,ISO9001 Certified CNC Machined Components,Versatile Material Compatibility Precision Milled Parts |
||
Product Description
Medical Device CNC Milling Components
High-precision CNC milling components for medical devices, manufactured with exceptional quality control and available at competitive factory pricing.
CNC Milling Parts Specifications
| Place of Origin | China |
|---|---|
| Brand Name | iMission |
| Material | Aluminum |
| Size | Support design |
| Color | Material Color or Customized |
| Thickness | 0.5-20.0mm or Customized |
| Processing | CNC Milling |
| Certificate | ISO9001 |
| MOQ | 1 PC |
| Lead time | 7-35 Working Days |
| Precision | +/-0.002~0.005mm |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
- Versatile Material Compatibility: Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
- Complex Geometry Machining: Create intricate 3D contours, deep pockets, internal threads, and custom cavities
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm × 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm × 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm × 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm × 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances:
Concentricity: 0.005mm
Cylindricity: 0.008mm
True Position: 0.01mm
Cylindricity: 0.008mm
True Position: 0.01mm
Thread Machining Capabilities:
Metric/Unified/Whitworth threads
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
ACME, trapezoidal, and special forms
Single-point threading up to 64 TPI
Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
Composites: Carbon fiber reinforced, fiberglass composites
Special Materials: Ceramics (machinable grades), graphite, engineered woods
Available Surface Finishes
Comprehensive post-processing services to ensure part corrosion resistance, aesthetics, and specific functionality:
Plating: Zinc Plating, Nickel Plating, Chrome Plating, Tin Plating
Coating: Powder Coating, Spray Painting, E-Coating
Chemical Treatment: Anodizing (for Aluminum), Passivation (for Stainless Steel), Black Oxide
Mechanical Treatment: Polishing, Brushing, Deburring
Quality Control
Quality is our cornerstone with a full-process quality control system:
Certification: ISO 9001:2015 Quality Management System Certified
Inspection Equipment: CMM, Optical Comparators, Calipers, Micrometers, Salt Spray Test Chambers, Hardness Testers
Process Control: Full-process monitoring from Incoming Quality Control (IQC), In-Process Quality Control (IPQC) to Final Outgoing Quality Control (OQC)
Documentation Support: PPAP, FAI Reports, Material Certificates
Our Working Process
- Inquiry & Consultation: You provide drawings (DXF/DWG/STEP/IGS), samples, or detailed requirements
- Design & Quotation: Our engineering team conducts DFM analysis and provides detailed solutions with competitive quotes
- Tooling Development: Upon order confirmation, we commence precision die design and manufacturing
- Sample Approval: We provide first article samples for your testing and approval
- Mass Production: After sample approval, we initiate automated mass production
- QC & Delivery: Final inspection, professional packaging, and shipment as scheduled
