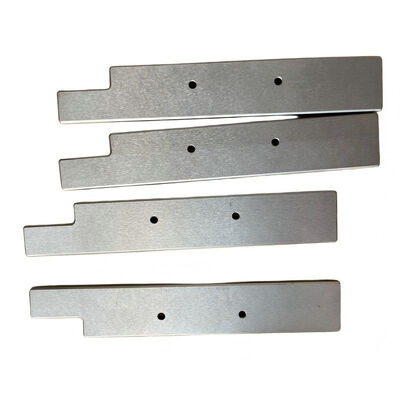

5-Axis CNC Milled Precision Milled Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Product Process | CNC Milling | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,or Samples |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. | Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components |
| Highlight | 5-Axis CNC Milled CNC Milling Parts,±0.002~0.005mm Tolerance CNC Machined Components,ISO9001 Certified Precision Milled Parts |
||
Product Description
Automotive CNC Milling Parts: Aluminum Shafts & 5-Axis CNC Milled Aerodynamic Impeller
Precision CNC milling components including automotive aluminum shafts and advanced 5-axis machined aerodynamic impellers for high-performance applications.
CNC Milling Parts Specifications
| Specification | Details |
|---|---|
| Place of Origin | China |
| Brand Name | iMission |
| Material | Steel |
| Size | Support design |
| Color | Material Color or Customized |
| Thickness | 0.5-20.0mm or Customized |
| Processing | CNC Milling |
| Certificate | ISO9001 |
| MOQ | 1 PC |
| Lead time | 7-35 Working Days |
| Precision | +/-0.002~0.005mm |
Packaging and Delivery
| Aspect | Details |
|---|---|
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Milling Parts Key Features
- Exceptional Precision & Tolerance Control: CNC milling parts achieve tight dimensional tolerances (down to ±0.005mm for high-precision applications) and consistent geometries across batch production, eliminating human-induced errors in traditional machining.
- Versatile Material Compatibility: Suitable for processing a wide range of materials including aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials, with excellent adaptability to both soft and hard workpiece requirements.
- Complex Geometry Machining Capability: Capable of creating intricate shapes such as 3D contours, deep pockets, internal threads, and custom cavities that are difficult or impossible to produce with conventional milling methods.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Target Industries & Applications
Aerospace & Defense
Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces
