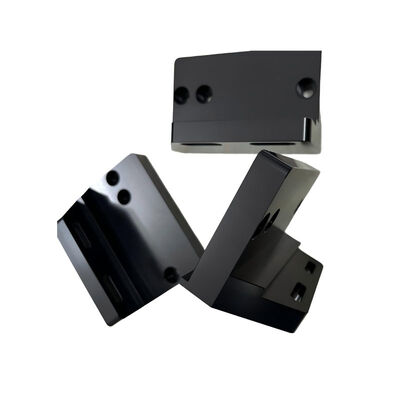

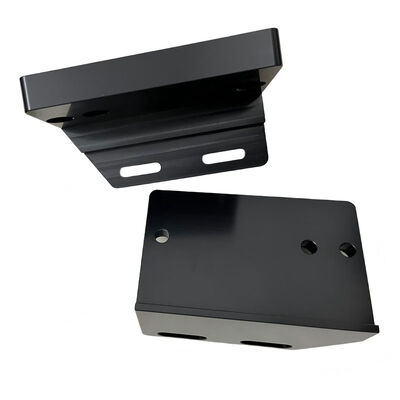

ISO9001 Certified CNC Machined Connector with Black Oxidation Surface Finish and ±0.002~0.005mm Tolerance
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Product Details
| Material | Aluminum | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Machining Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | Black Oxidation Surface Finish CNC Machined Connector,±0.002~0.005mm Tolerance Precision CNC Component,ISO9001 Certified CNC Machined Electronics Part |
||
Product Description
Electronics CNC Machined Connector Components
Our ISO 9001:2015 certified manufacturing facility specializes in high-precision custom hardware components through advanced CNC machining processes. We deliver engineered solutions for industries requiring strict tolerances, material integrity, and reliable performance.
CNC Machining Parts Specifications
| Product Name | CNC Machining Parts |
| Material Available | Aluminum |
| Surface Finish | Black Oxidation |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Machining Features
CNC machining parts are renowned for exceptional dimensional accuracy and tight tolerances, ranging from micro-components to large-scale industrial components. Manufactured via computer-controlled cutting tools, these parts ensure consistent quality across high-volume production runs, and are compatible with a wide array of materials including metals, plastics, and composites, making them ideal for aerospace, automotive, and machinery manufacturing sectors.
Key Features & Advantages
Precision Engineering
- Ultra-Tight Tolerances: Standard machining to ±0.05mm, with high-precision capabilities reaching ±0.01mm for critical dimensions
- Advanced Equipment: Utilization of multi-axis CNC machining centers (3/4/5-axis), Swiss-type lathes, and milling-turning compound systems
- Surface Excellence: Achievable surface roughness from Ra 0.8 μm to Ra 6.3μm, with mirror polishing options available
Material Versatility
| Material Category | Specific Materials | Key Characteristics |
|---|---|---|
| Stainless Steels | 304, 316, 303, 17-4PH | Corrosion resistance, strength |
| Alloy Steels | 4140, 4340, 1045, D2 | High strength, wear resistance |
| Aluminum Alloys | 6061, 7075, 2024 | Lightweight, good machinability |
| Copper Alloys | Brass C360, Bronze, Beryllium Copper | Conductivity, antimicrobial properties |
| Engineering Plastics | POM, PA66, PEEK, PTFE | Chemical resistance, low friction |
| Exotic Alloys | Titanium, Inconel, Monel | High temperature, extreme environment performance |
Comprehensive Manufacturing Capabilities
- Primary Processes: CNC turning, CNC milling, drilling, boring, threading, grinding
- Secondary Operations: Deburring, chamfering, tapping, knurling, marking
- Heat Treatment: Annealing, quenching & tempering, case hardening, nitriding
- Surface Finishing: Anodizing (Type II/III), plating (Zn, Ni, Cr), passivation, powder coating, sandblasting
Technical Specifications
Machining Parameters
- Maximum Part Dimensions: Turning: Ø300mm × 500mm length; Milling: 800mm × 600mm × 500mm (larger available upon request)
- Production Volume: Prototype (1-50 pieces) to high-volume production (10,000+ units)
- Lead Times: Prototyping: 3-7 business days; Standard production: 10-20 business days; Expedited services available
Design Support & Engineering Services
Design for Manufacturing (DFM) Analysis
- Manufacturability Review: Identification of potential production issues
- Cost Reduction Analysis: Alternative approaches, material optimization
- Tolerance Analysis: Statistical tolerance stacking, specification review
- Fixture/Tooling Design: Custom workholding solutions for complex parts
- Process Optimization: Sequencing, tool selection, cycle time reduction
CAD/CAM Capabilities
- CAD Software: SolidWorks, CATIA, UG/NX, Autodesk Inventor, AutoCAD
- CAM Software: Mastercam, HyperMILL, PowerMILL, CATIA, UG/NX
- Simulation: Virtual machining verification, collision detection, material removal simulation
- Reverse Engineering: 3D scanning (laser, structured light) to CAD model conversion
- Prototyping: Rapid prototyping support via 3D printing for design validation
Specialized Engineering Services
- Finite Element Analysis: Stress, thermal, modal analysis for component optimization
- Fluid Dynamics: Flow analysis for manifolds, fluid system components
- Thermal Analysis: Heat sink performance, thermal management solutions
- Drafting & Documentation: Creation of manufacturing drawings, GD&T application
Ordering Process & Lead Times
Standard Quotation & Order Process
- RFQ Submission: Provide drawings (PDF/DWG), 3D models (STEP/IGES/SLDPRT), specifications
- Technical Review: Engineering assessment, DFM analysis, process planning (24-48 hour response)
- Quotation: Detailed pricing with breakdown (material, setup, machining, finishing)
- Prototype Phase: Sample production with full inspection report
- Production Approval: Process validation, inspection plan agreement
- Manufacturing: Scheduled production with milestone updates (weekly/daily)
- Final Inspection: Complete FAIR or dimensional report before shipping
- Delivery: Appropriate packaging, shipping with tracking, customs documentation
Lead Time Guidelines
| Production Type | Standard Lead Time | Expedited Options | Factors Affecting Lead Time |
|---|---|---|---|
| Prototype (1-10 pcs) | 5-15 business days | 3-5 days (+30-50%) | Material availability, complexity, fixturing |
| Low Volume (10-100 pcs) | 10-25 business days | 5-10 days (+25-40%) | Tooling requirements, secondary operations |
| Medium Volume (100-1,000 pcs) | 3-5 weeks | 2-3 weeks (+20-35%) | Production scheduling, capacity |
| High Volume (1,000+ pcs) | 6-12 weeks | 4-8 weeks (+15-30%) | Material procurement, dedicated production runs |
| Large Parts (>1m dimension) | 4-10 weeks | 3-6 weeks (+25-50%) | Special handling, machine availability |
Packaging, Shipping & Logistics
Packaging Solutions
- Standard Packaging: Poly bags with desiccant in partitioned cartons
- ESD-Sensitive: Antistatic bags, conductive foam, static-dissipative containers
- Cleanroom Packaging: Double-bagged, cleanroom compatible materials
- VCI Protection: Volatile corrosion inhibitor papers/films for ferrous metals
- Custom Fixturing: CNC-machured foam inserts, custom racks, reusable containers
- International Shipping: Export-rated crates, climate-controlled options available
Logistics & Supply Chain
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Export Documentation: Commercial invoice, packing list, certificate of origin
- Compliance Documentation: Material certifications, RoHS/REACH declarations
- Inventory Management: Consignment stock, bonded warehousing, kanban systems
- Just-In-Time Delivery: Scheduled deliveries aligned with production schedules
