Custom CNC Milling Parts and Precision CNC Milled Components with High Tolerance, ISO9001 Certified, and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified Precision CNC Milled Components,100% Inspection CNC Machined Parts |
||
Product Description

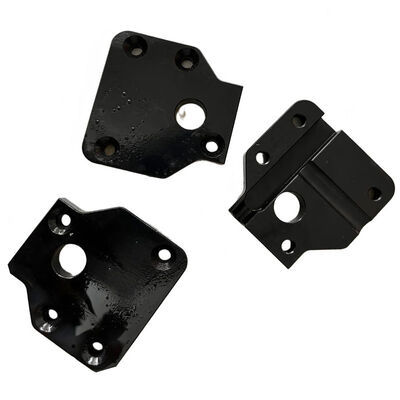

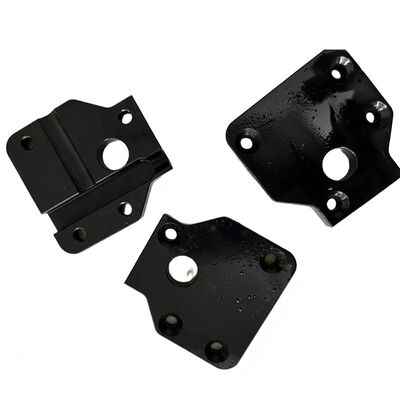

Custom CNC Milled Bracket & CNC Milling Service
CNC Milling Parts Specifications
| Product Name | Precision CNC Milling Parts |
|---|---|
| Material Available | Stainless Steel |
| Surface Finish | Blackened |
| Processing | CNC Milling |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Capabilities
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
- Versatile Material Compatibility: Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
- Complex Geometry Machining Capability: Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Our Working Process
Inquiry & Consultation: You provide drawings (DXF/DWG/STEP/IGS), samples, or detailed requirements.
Design & Quotation: Our engineering team conducts DFM (Design for Manufacturability) analysis and provides a detailed solution with a competitive quote.
Tooling Development: Upon order confirmation, we commence precision die design and manufacturing.
Sample Approval: We provide first article samples for your testing and approval.
Mass Production: After sample approval, we initiate automated mass production.
QC & Delivery: Final inspection, professional packaging, and shipment as scheduled.
Why Choose Us?
- Expert Engineering Support: Free DFM advice to optimize your design for cost savings
- Rapid Response: 24-hour inquiry reply, fast prototyping (typically 7-15 days)
- Flexible Customization: Full OEM/ODM support, manufacturing strictly to your specifications
- Global Supply Experience: Products exported to North America, Europe, Asia, etc., familiar with international standards and logistics
Packaging & Shipping
Packaging: Standard export packaging options include blister trays, bubble bags, EPE foam, cartons, and wooden crates to ensure parts are free from wear and deformation during transit.
Shipping: Support various trade terms (FOB, CIF, DDP, etc.). Global shipping via sea freight, air freight, or express couriers (DHL, FedEx, etc.).
