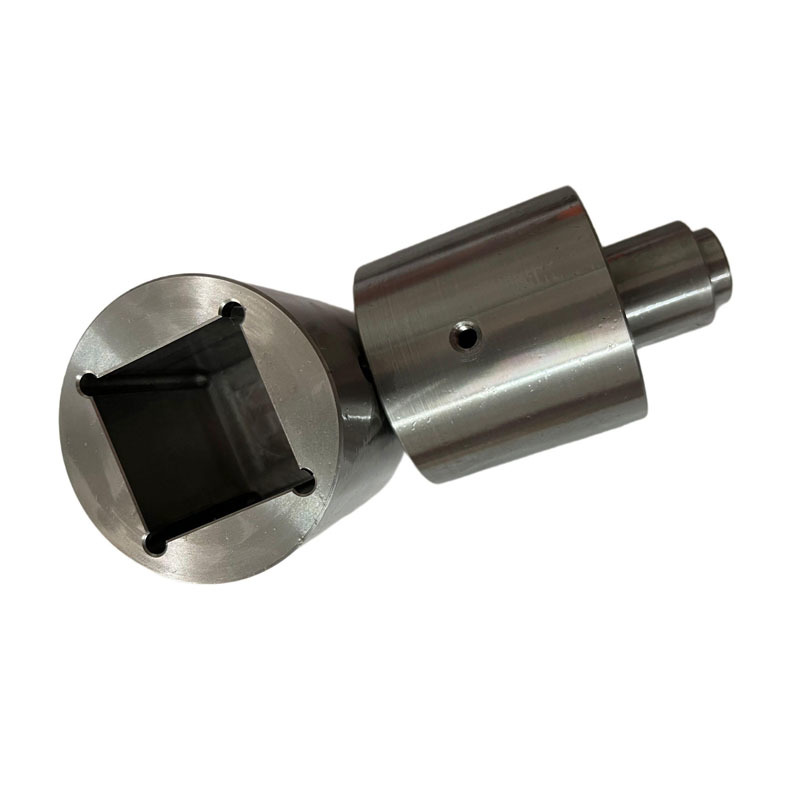

High Precision CNC Turning Parts with High Tolerance ISO9001 Certified and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Turning Parts,ISO9001 Certified Precision Machined Components,100% Inspection CNC Machined Parts |
||
Product Description
Supplier of Stainless Steel Hydraulic Fittings and OEM Manufacturer for Precision Auto Components
Specializing in high-quality CNC turning parts and precision auto components manufacturing with comprehensive OEM capabilities.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Features
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm * 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm * 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm * 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm * 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Target Industries & Applications
Aerospace & Defense
Components: Fasteners, fittings, bushings, spacers, hydraulic parts
Materials: Titanium, high-strength aluminum, corrosion-resistant steels
Standards: AS9100, NADCAP (supplemental), MIL specifications
Materials: Titanium, high-strength aluminum, corrosion-resistant steels
Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
Components: Surgical instruments, implantable components, device housings
Materials: 316L stainless, titanium, PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Materials: 316L stainless, titanium, PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
Components: Engine parts, transmission components, fuel system parts, fittings
Materials: Various steels, aluminum, brass, exotic alloys for racing
Capabilities: High-volume production, lean manufacturing, JIT delivery
Materials: Various steels, aluminum, brass, exotic alloys for racing
Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
Components: Connector pins, shielding components, heat sinks, spacers
Materials: Copper alloys, aluminum, conductive plastics
Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Materials: Copper alloys, aluminum, conductive plastics
Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
Components: Valve bodies, fittings, manifolds, pistons, cylinders
Materials: Carbon steel, stainless, brass, aluminum
Critical Aspects: Pressure integrity, sealing surfaces, thread quality
Materials: Carbon steel, stainless, brass, aluminum
Critical Aspects: Pressure integrity, sealing surfaces, thread quality
