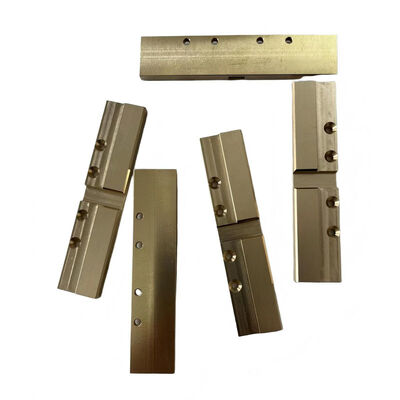

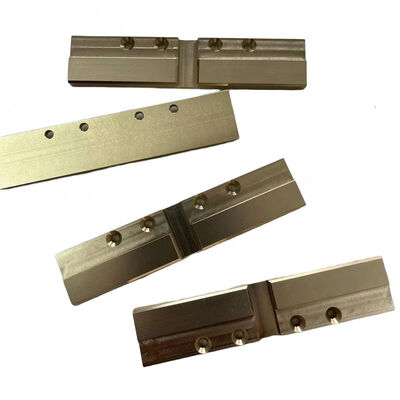

ISO9001 Certified CNC Milling Parts with High Tolerance and 100% Inspection for Precision CNC Milled Components
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ISO9001 Certified CNC Milling Parts,±0.002~0.005mm Tolerance Precision CNC Machined Components,100% Inspection Automotive CNC Milled Parts |
||
Product Description
Precision CNC Milling Services and Medical Device CNC Milled Components
We provide comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Key Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm for high-precision applications with consistent geometries across batch production.
- Versatile Material Compatibility: Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, and engineering plastics.
- Complex Geometry Machining Capability: Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Manufacturing Capabilities & Equipment
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions
- Standard 5-axis: 800mm × 600mm × 500mm
- Gantry machines: 5000mm × 2500mm × 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Material Expertise
Metals & Alloys
Aluminum Alloys
- Grades: 6061, 7075, 2024, 5083, MIC-6
- Machinability: Excellent
- Applications: Aerospace, automotive, electronics, enclosures
Stainless Steels
- Grades: 303, 304, 316, 17-4PH, 15-5PH, 416
- Machinability: Fair to Good
- Applications: Medical, marine, chemical, food processing
Tool Steels
- Grades: D2, A2, O1, H13, P20, S7
- Machinability: Fair to Difficult
- Applications: Molds, dies, tooling, wear components
Carbon & Alloy Steels
- Grades: 1018, 1045, 4140, 4340, 8620
- Machinability: Good to Excellent
- Applications: Machine components, automotive, industrial
Titanium Alloys
- Grades: Grade 2, Grade 5 (Ti6Al4V), Grade 23
- Machinability: Difficult
- Applications: Aerospace, medical implants, chemical
Copper Alloys
- Grades: C110, C360, C172, C932
- Machinability: Excellent to Good
- Applications: Electrical, thermal, bearing, decorative
High-Temp Alloys
- Grades: Inconel 718, Hastelloy, Waspaloy
- Machinability: Very Difficult
- Applications: Aerospace, turbine, extreme environment
Magnesium Alloys
- Grades: AZ31B, AZ91D, WE43
- Machinability: Excellent (with precautions)
- Applications: Aerospace, racing, electronics (lightweight)
Non-Metallic Materials
Engineering Plastics
- Varieties: PEEK, Delrin, Nylon, PTFE, POM, UHMW
- Applications: Medical, bearings, insulators, low friction
Advanced Composites
- Varieties: Carbon Fiber, G10/FR4, Fiberglass
- Applications: Aerospace, sporting goods, electronics
Precision Ceramics
- Varieties: Alumina, Zirconia, Macor
- Applications: Semiconductor, medical, wear components
Graphite & EDM Materials
- Varieties: ISO-63, POCO, GrafTech
- Applications: EDM electrodes, thermal, crucibles
Ordering Process & Lead Times
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Lead Time Guidelines
| Order Type | Typical Lead Time | Notes |
|---|---|---|
| Prototype/Samples | 5-10 business days | Standard materials, simple geometries |
| Low Volume (1-100 pcs) | 10-20 business days | Includes setup and first article inspection |
| Medium Volume (100-1,000 pcs) | 3-4 weeks | Batch production with process optimization |
| High Volume (1,000+ pcs) | 4-8 weeks | Dedicated production runs, tooling optimization |
| Expedited Services | 50-100% premium | Available for urgent requirements |
Customization & Special Capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20× diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
