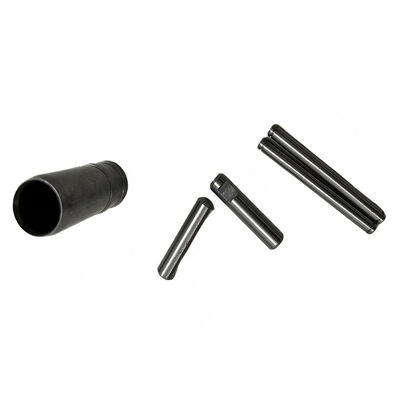

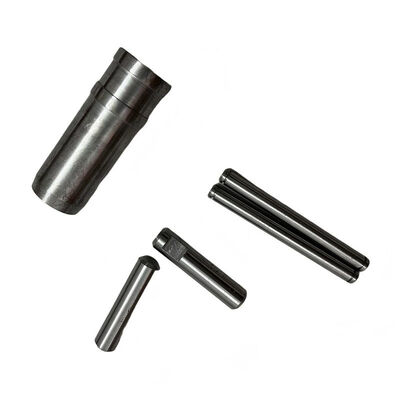

Precision CNC Turning Parts with ±0.002~0.005mm Tolerance, ISO9001 Certified and 100% Inspection for Shafts and Pins
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Turning Parts,ISO9001 Certified Precision Turned Components,100% Inspection CNC Machined Shafts |
||
Product Description
Precision CNC Turning Service for Shafts and Pins
We provide high-precision CNC turning components manufactured with Swiss-type and multi-axis turning centers for industries requiring tight tolerances, complex geometries, and exceptional surface finishes. Our comprehensive capabilities cover the full spectrum of turned part manufacturing from prototype development to high-volume production runs.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Features
Our CNC turning parts deliver exceptional precision and consistent quality, capable of machining both metal and non-metal components with diverse complex structures including shafts and discs. The machining process is precisely controlled by pre-set programs, enabling one-time forming of intricate details such as complex threads, chamfers, and grooves. This makes our parts ideally suited for stringent application requirements across machinery manufacturing, automotive, aerospace, and other demanding industries.
Manufacturing Capabilities & Specifications
Equipment Specifications
| Machine Type | Axis Configuration | Maximum Dimensions | Tolerance Capability | Special Features |
|---|---|---|---|---|
| Swiss-Type Lathes | 5-13 axis | Ø32mm × 300mm | ±0.005mm | Simultaneous machining, live tooling, backworking |
| Multi-Axis Turning Centers | 6-9 axis | Ø250mm × 500mm | ±0.01mm | B-axis milling, Y-axis capability, sub-spindle |
| CNC Lathes | 2-4 axis | Ø600mm × 1000mm | ±0.02mm | Hydraulic chucking, bar feeders, part catchers |
| Turn-Mill Centers | 7+ axis | Ø150mm × 400mm | ±0.008mm | Complete part processing in single setup |
Technical Parameters
Standard Tolerance Range: ±0.01mm to ±0.05mm
Fine Tolerance Capability: ±0.005mm (for critical dimensions)
Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Material Expertise
Metals & Alloys
| Material Category | Specific Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Aluminum Alloys | 6061, 7075, 2024, 5083 | Excellent | Aerospace, automotive, electronics |
| Stainless Steels | 303, 304, 316, 17-4PH, 416 | Good to Fair | Medical, marine, chemical processing |
| Carbon & Alloy Steels | 1018, 1045, 4140, 4340 | Excellent | Industrial machinery, automotive |
| Tool Steels | D2, A2, O1, S7 | Fair to Difficult | Molds, dies, tooling components |
| Copper Alloys | C360, C464, C17200, C10100 | Excellent | Electrical, plumbing, marine |
| Exotic Alloys | Titanium (Gr2, Gr5), Inconel, Monel | Difficult | Aerospace, medical implants |
| Magnesium Alloys | AZ31B, AZ91D | Excellent (with precautions) | Aerospace, portable devices |
Non-Metallic Materials
- Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
- Composites: Carbon fiber reinforced, fiberglass composites
- Special Materials: Ceramics (machinable grades), graphite, engineered woods
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
