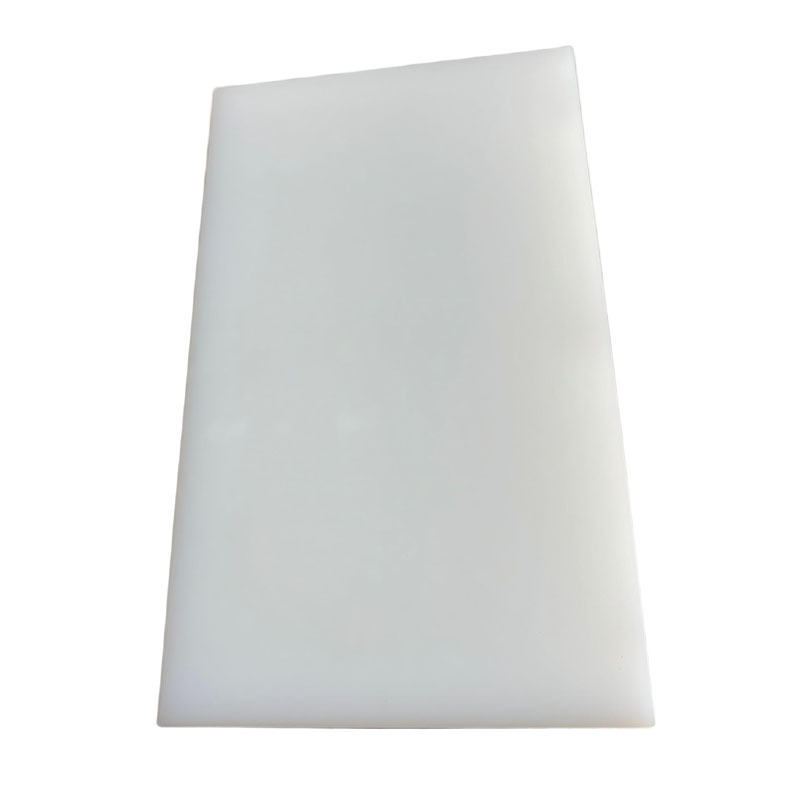

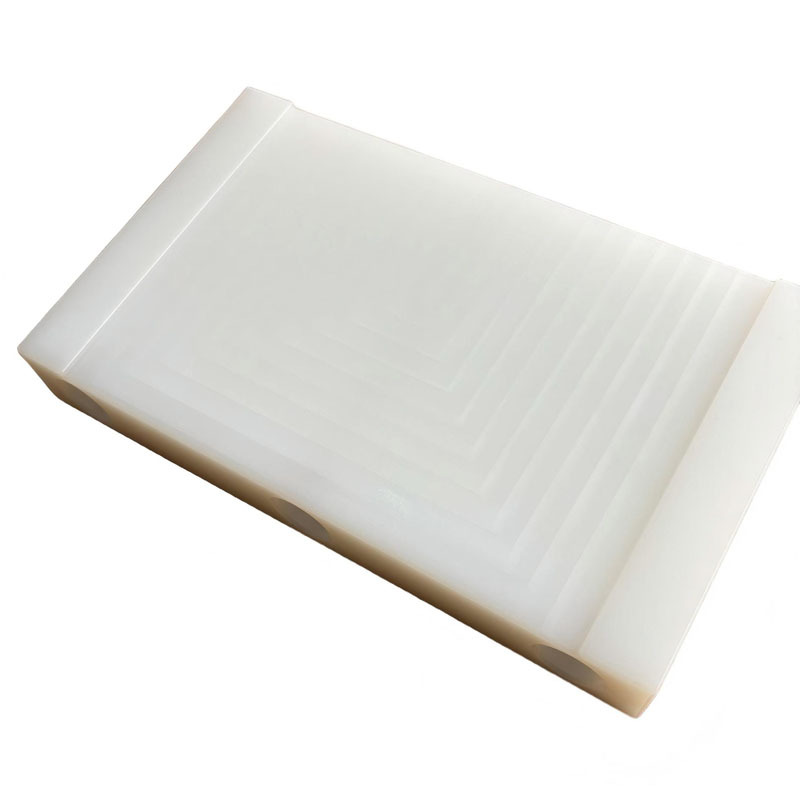

ISO9001 Certified CNC Milling Parts and Acetal CNC Milling Acetal Enclosure
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Acetal | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ISO9001 Certified CNC Milling Parts,±0.002~0.005mm Tolerance Precision Machined Components,100% Inspection CNC Machined Parts |
||
Product Description
Deep Pocket CNC Milling Aluminum Enclosure and High-Speed CNC Milled Graphite Electrode
Deep Pocket Acetal CNC Milling Aluminum Enclosure and High-Speed CNC Milled Graphite Electrode
Technical Overview
We provide comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Acetal |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm for high-precision applications with consistent geometries across batch production.
- Versatile Material Compatibility: Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, and engineering plastics.
- Complex Geometry Machining Capability: Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Manufacturing Capabilities & Equipment Specifications
A. CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
B. Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Target Industries & Applications
A. Aerospace & Defense
Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
B. Medical & Life Sciences
Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
C. Automotive & Motorsports
Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support
D. Electronics & Semiconductor
Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning
E. Industrial Machinery & Automation
Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces
