High-Accuracy CNC Milling Parts with High Tolerance ISO9001 Certified and 100% Inspection
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | ODM and OEM |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-10kg |
|---|---|---|---|
| Key Word | CNC Milling Parts | Shipping Method | Express, Air, Sea, Etc. |
| Feature | Durable And High Precision | Processing | CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D Printing, Die Casting, Injection,etc. |
| Surface Finishing | Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, Etc. | Material Available | Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc. |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components | ||
| Highlight | ±0.002~0.005mm Tolerance CNC Milling Parts,ISO9001 Certified Precision Machined Components,100% Inspection CNC Machined Parts |
||
Product Description

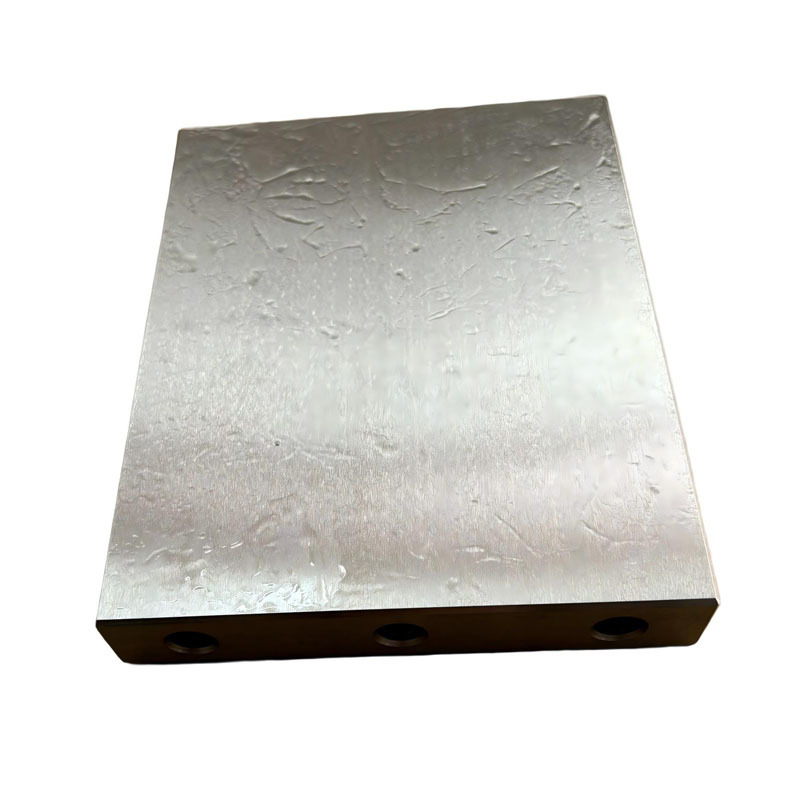

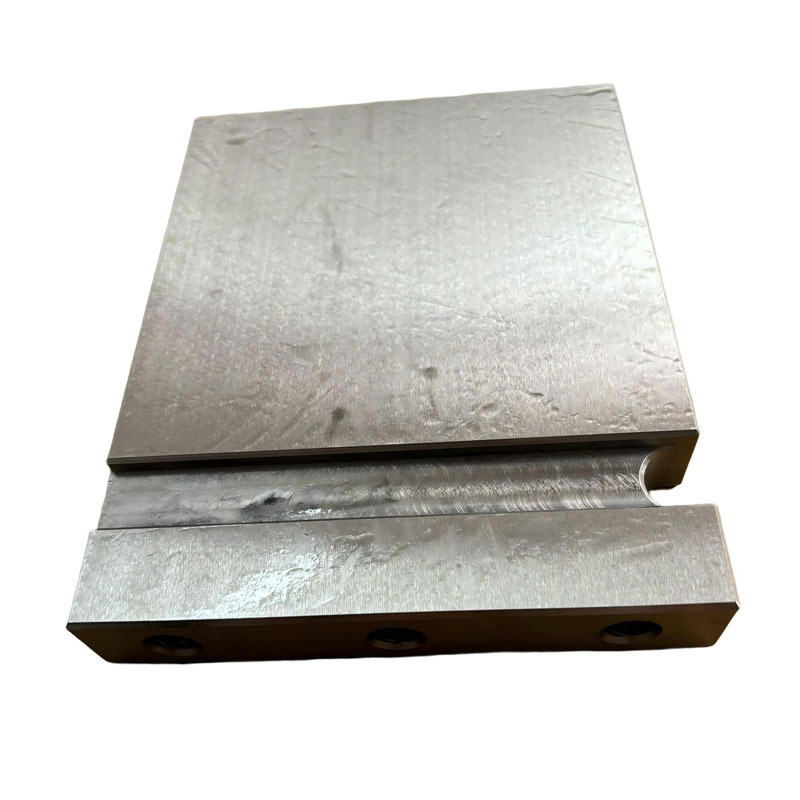

High-Accuracy CNC Milled Bracket and Rapid Prototype CNC Milling
CNC Milling Parts Specifications
| Product Name | CNC Milling Parts |
|---|---|
| Material Available | Steel |
| Processing | CNC |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
| Engineer Support | Available for engineering assistance and drawings design |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Milling Parts Key Features
- Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm for high-precision applications with consistent geometries across batch production.
- Versatile Material Compatibility: Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, and engineering plastics.
- Complex Geometry Machining Capability: Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500*400 to 1500*800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400*400 to 800*600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500*500 to 1200*800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000*1000 to 5000*2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400*400 to 800*600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
- Standard Machining Tolerances: ±0.025mm to ±0.10mm
- Precision Machining Capability: ±0.005mm (with process control)
- Ultra-Precision Machining: ±0.002mm (for critical features)
- Surface Finish Range:
- As-machined: Ra 1.6μm to Ra 3.2μm
- Fine machining: Ra 0.4μm to Ra 1.6μm
- Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
- Geometric Tolerancing:
- Flatness/Straightness: 0.01mm per 100mm
- Parallelism/Perpendicularity: 0.015mm per 100mm
- True Position: 0.01mm (with precision tooling)
- Maximum Part Dimensions:
- Standard 5-axis: 800mm * 600mm * 500mm
- Gantry machines: 5000mm * 2500mm * 1500mm
- Weight capacity: Up to 10,000kg on largest machines
Target Industries & Applications
Aerospace & Defense
- Components: Structural frames, brackets, housings, turbine components, fittings
- Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
- Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
- Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
- Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
- Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
- Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
- Components: Engine parts, transmission housings, suspension components, brackets
- Materials: Aluminum, various steels, brass, magnesium (racing)
- Production Volumes: Prototype to high-volume (10,000+ parts)
- Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
- Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
- Materials: Aluminum, copper, engineering plastics, composites
- Precision Requirements: Often ±0.005mm or better, micron-level flatness
- Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
- Components: Machine frames, brackets, guides, robotic components, fixture
- Materials: Carbon steel, aluminum, stainless, cast iron
- Requirements: Wear resistance, dimensional stability, rigidity
- Capabilities: Large part machining, weldment preparation, assembly interfaces
