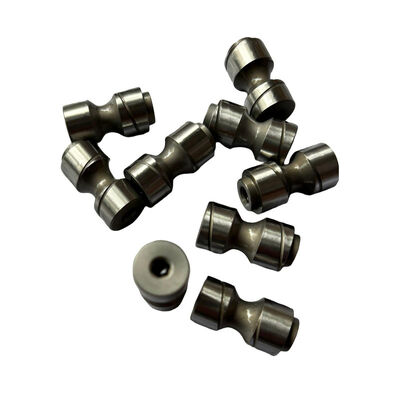

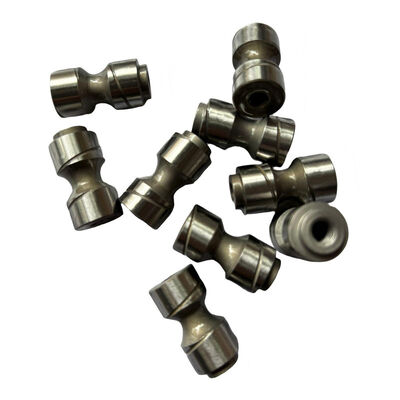

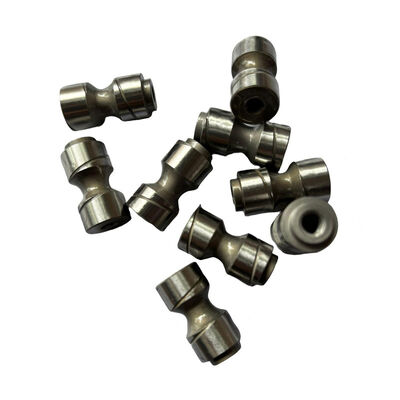

Stainless Steel CNC Turning Parts and CNC Milled Housing with High Tolerance and ISO9001 Certification
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | Stainless Steel CNC Turning Parts,±0.002~0.005mm Tolerance CNC Milled Housing,ISO9001 Certified Precision Machined Components |
||
Product Description
Stainless Steel CNC Milled Housing and CNC Turning Parts for Medical Device
Precision CNC turning and milling parts manufactured from stainless steel specifically for medical device applications, featuring tight tolerances and superior surface finishes.
CNC Turning Milling Parts Specifications
| Product Name | CNC Turning Milling Parts |
| Material Available | Steel |
| Processing | CNC Turning |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
| Port | Shenzhen |
CNC Turning Milling Parts Features
CNC turning-milling parts feature one-step machining precision, minimal setup errors, and support for complex geometries including both rotational and prismatic features. With tight dimensional tolerances, smooth surface finishes, and excellent batch consistency, they suit fast-paced production demands while maintaining high quality.
Manufacturing Capabilities & Equipment Specifications
CNC Milling Equipment Portfolio
| Machine Type | Axis Configuration | Table Size (mm) | Positioning Accuracy | Repeatability | Spindle Power/Speed | Unique Capabilities |
|---|---|---|---|---|---|---|
| 3-Axis Vertical | X, Y, Z | 500×400 to 1500×800 | ±0.005mm | ±0.003mm | 7.5-22kW, 8,000-24,000 RPM | Heavy material removal, deep cavities |
| 4-Axis with Rotary | X, Y, Z, A | 400×400 to 800×600 | ±0.008mm | ±0.005mm | 10-15kW, 12,000-20,000 RPM | Continuous indexing, cylindrical features |
| 5-Axis Simultaneous | X, Y, Z, A, B/C | 500×500 to 1200×800 | ±0.01mm | ±0.006mm | 12-30kW, 10,000-30,000 RPM | Complex 3D contours, undercuts, compound angles |
| 5-Axis Gantry | X, Y, Z, A, C | 2000×1000 to 5000×2500 | ±0.015mm | ±0.008mm | 18-40kW, 6,000-15,000 RPM | Large part machining, molds, aerospace structures |
| High-Speed Machining | 3/5-Axis | 400×400 to 800×600 | ±0.005mm | ±0.002mm | 15-25kW, 20,000-60,000 RPM | Aluminum, plastics, graphite, fine details |
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
As-machined: Ra 1.6μm to Ra 3.2μm
Fine machining: Ra 0.4μm to Ra 1.6μm
Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Flatness/Straightness: 0.01mm per 100mm
Parallelism/Perpendicularity: 0.015mm per 100mm
True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Standard 5-axis: 800mm × 600mm × 500mm
Gantry machines: 5000mm × 2500mm × 1500mm
Weight capacity: Up to 10,000kg on largest machines
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Packaging & Logistics
Packaging Options
- Standard: Poly bags with labeled partitions in shipping cartons
- ESD-Safe: Anti-static packaging for electronic components
- Cleanroom: Double-bagged, particulate-controlled for medical/aerospace
- VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals
- Custom: Foam inserts, vacuum sealing, desiccant packs as required
Shipping & Logistics
- Export Documentation: Commercial invoice, packing list, certificate of origin
- International Compliance: REACH, RoHS, conflict mineral documentation
- Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)
- Inventory Management: Consignment stock, kanban systems, bonded warehousing
