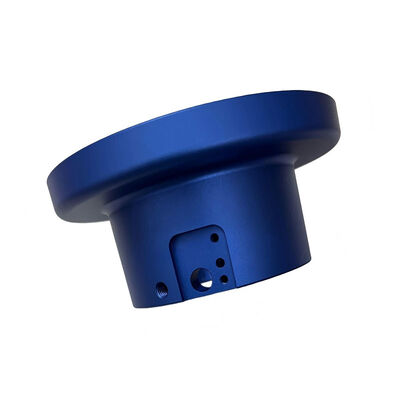

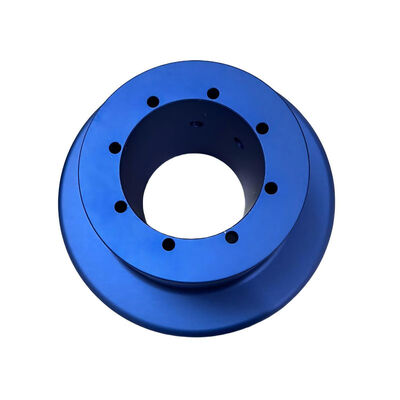

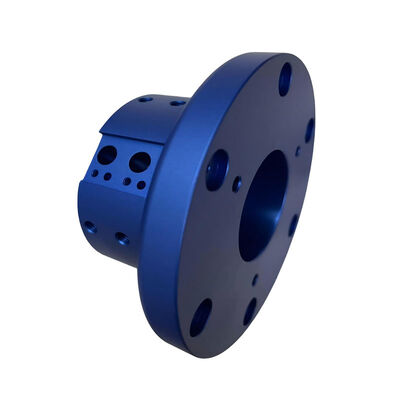

Aluminum Alloy High Precision ISO9001 Certified CNC Turning Parts and CNC Turned Shaft Parts
| Place of Origin | China |
|---|---|
| Brand Name | IMission |
| Certification | ISO9001 |
| Model Number | CNC Turning |
| Minimum Order Quantity | I PC |
| Price | 0.1~5USD |
| Packaging Details | Bubble and Carton or Customization |
| Delivery Time | 7~35 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum | Weight | 0.1-8kg |
|---|---|---|---|
| Service | OEM Or ODM | Key Word | CNC Turning Parts |
| Shipping Method | Express, Air, Sea, Etc. | Product Process | CNC Turning |
| Quality | 100% Inspection | Our Service | 24 Hours Online |
| Feature | Durable And High Precision | Surface Finishing | Anodizing, Plating, Polishing, Etc |
| Processing | CNC Machining, CNC Milling, CNC Turning,Stamping... | Drawing | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF Or Samples |
| Highlight | ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts | ||
| Highlight | Aluminum Alloy CNC Turning Parts,High Precision CNC Turned Components,ISO9001 Certified CNC Turned Shaft Parts |
||
Product Description
Aluminum Alloy CNC Turned Components and Automotive CNC Turned Shaft Parts
We specialize in high-precision CNC turning components manufactured with Swiss-type and multi-axis turning centers for industries requiring tight tolerances, complex geometries, and exceptional surface finishes. Our capabilities encompass the full spectrum of turned part manufacturing from prototype to high-volume production.
CNC Turning Parts Specifications
| Product Name | CNC Turning Parts |
|---|---|
| Material Available | Aluminum |
| Processing | CNC Turning |
| Surface Finish | Blue Oxidation |
| Tolerance | ±0.002~0.005mm |
| Drawing Accepted | IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples |
| Inspection | CMM, Projector, Height Gauge, etc. |
| Lead Time | 7~35 working days |
| Quality Assurance | ISO9001:2015, SGS, RoHs |
| Payment Term | MoneyGram, Western Union, T/T, D/P, D/A, L/C |
| Price | According to your drawing or requirements |
Packaging and Delivery
| Packaging | Bubble and Carton or Customization |
|---|---|
| Port | Shenzhen |
CNC Turning Parts Characteristics
CNC turning parts feature high precision and excellent consistency, capable of machining metal or non-metal components with diverse complex structures such as shafts and discs. Controlled precisely by pre-set programs, the machining process enables one-time forming of intricate details like complex threads, chamfers and grooves, making these parts well-suited for stringent application requirements in machinery manufacturing, automotive, aerospace and other industries.
Technical Parameters
Standard Tolerance Range
±0.01mm to ±0.05mm
Fine Tolerance Capability
±0.005mm (for critical dimensions)
Surface Finish
Ra 0.4μm to Ra 3.2μm (standard)
Ultra-Finish Options
Ra 0.1μm achievable with polishing/burnishing
Geometric Tolerances
- Concentricity: 0.005mm
- Cylindricity: 0.008mm
- True Position: 0.01mm
Thread Machining Capabilities
- Metric/Unified/Whitworth threads
- ACME, trapezoidal, and special forms
- Single-point threading up to 64 TPI
- Thread rolling capabilities
Complex Geometries
- Eccentric Features: Off-center turning, cam profiles
- Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm
- Thin-Wall Components: Walls as thin as 0.1mm with proper support
- Deep Hole Drilling: Up to 20* diameter depth with gun drilling equipment
- Contoured Surfaces: Programmable radius forms, complex profiles
Special Processes
- Hard Turning: Machining of hardened materials (45-65 HRC)
- Polygon Turning: Non-circular forms, hex shapes, special profiles
- Burnishing: Diamond or roller burnishing for superior surface finish
- Knurling: Straight, diagonal, and diamond patterns
- Part Marking: Laser engraving, dot peen marking, serialization
Standard Process Flow
- RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications
- Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)
- Quotation: Detailed pricing including tooling, setup, and piece price
- Prototype Phase (if required): Sample production with inspection report
- Production Approval: Process validation, inspection plan approval
- Manufacturing: Scheduled production with milestone updates
- Final Inspection: Complete FAIR or inspection report
- Delivery: Packaged per requirements, shipping with tracking
Target Industries & Applications
Aerospace & Defense
- Components: Fasteners, fittings, bushings, spacers, hydraulic parts
- Materials: Titanium, high-strength aluminum, corrosion-resistant steels
- Standards: AS9100, NADCAP (supplemental), MIL specifications
Medical & Dental
- Components: Surgical instruments, implantable components, device housings
- Materials: 316L stainless, titanium, PEEK, cobalt-chrome
- Requirements: Biocompatibility, cleanroom manufacturing, full traceability
Automotive & Motorsports
- Components: Engine parts, transmission components, fuel system parts, fittings
- Materials: Various steels, aluminum, brass, exotic alloys for racing
- Capabilities: High-volume production, lean manufacturing, JIT delivery
Electronics & Semiconductor
- Components: Connector pins, shielding components, heat sinks, spacers
- Materials: Copper alloys, aluminum, conductive plastics
- Precision Requirements: Often ±0.005mm or tighter, micron-level finishes
Fluid Power & Hydraulics
- Components: Valve bodies, fittings, manifolds, pistons, cylinders
- Materials: Carbon steel, stainless, brass, aluminum
- Critical Aspects: Pressure integrity, sealing surfaces, thread quality
